Rear Side Trim, Removing and Installing

1 - Side trim
- Remove rear seat bench and backrest.
- Remove outer seat belt anchorage point See Fig. 1.
- Remove striker pin on rear backrest See Fig. 2.

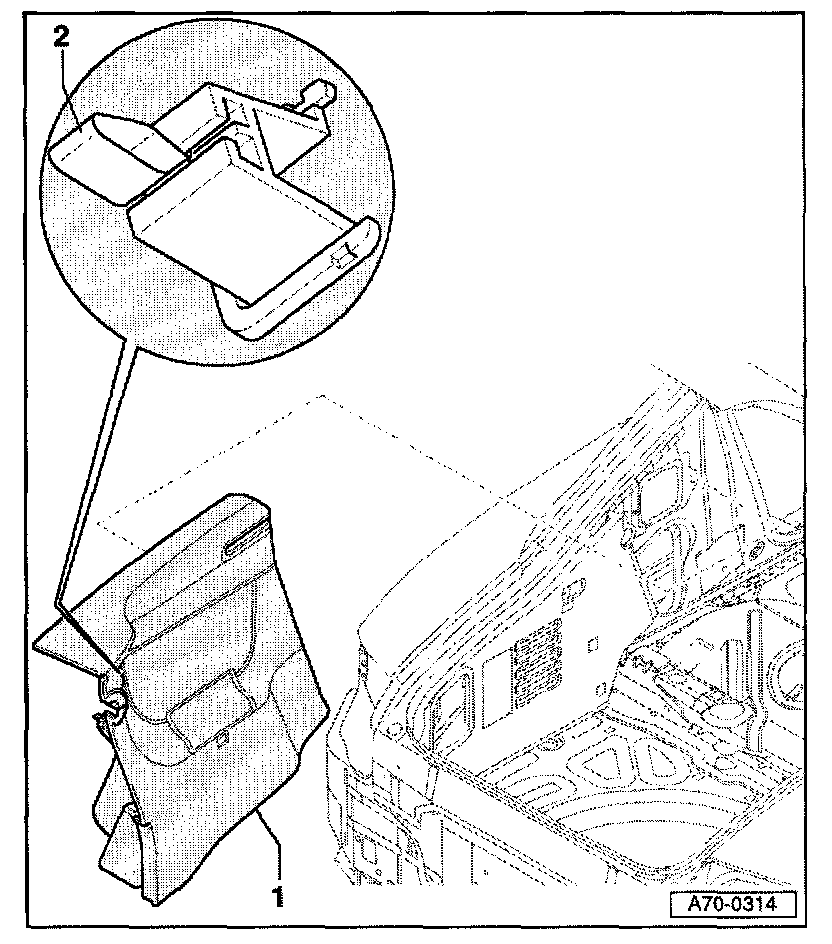

- Detach side trim - 1 - from clips - 2 - (8x), starting at top rear.
2 - Clip

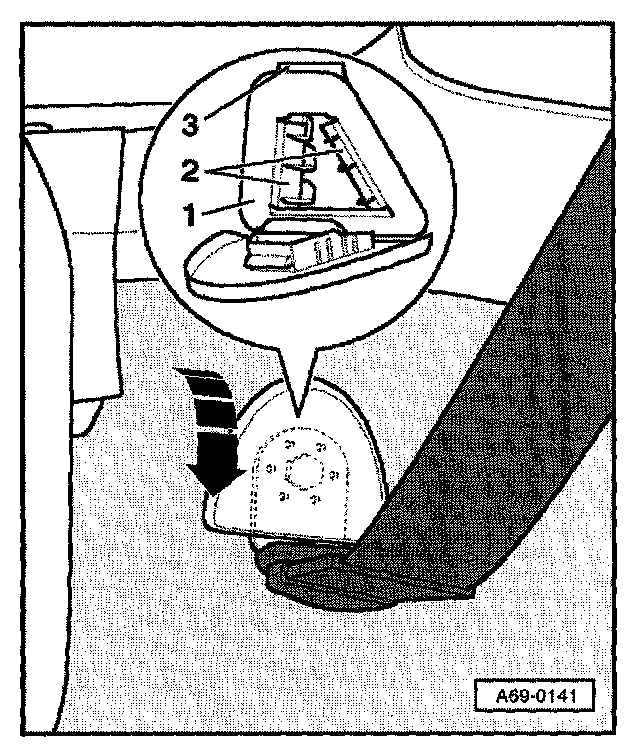

Fig. 1 Removing outer seat belt anchorage point







- Flip open cover flap - 1 - in direction of arrow.
- Unscrew bolt.
Tightening torque: 55 Nm (41 ft lb)

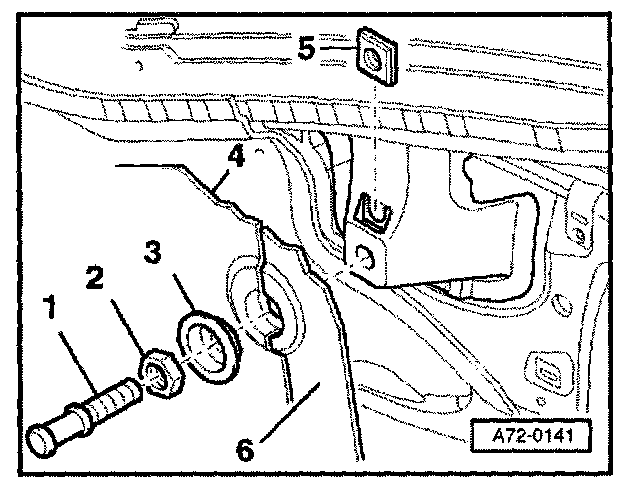

Fig. 2 Removing striker pin







- Loosen nut - 2 -.
- Unscrew striker pin - 1
- when installing, adjust striker pin.

4 - Luggage compartment side trim
5 - Threaded plate
6 - Side trim
