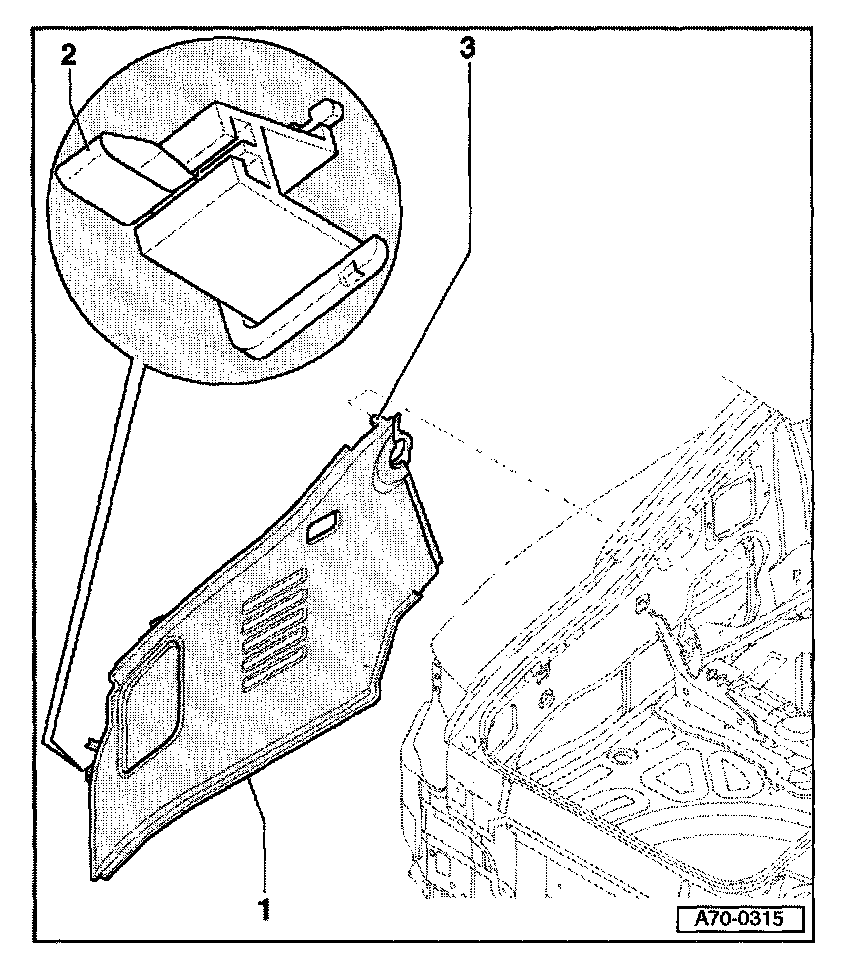

Luggage Compartment Side Trim

1 - Luggage compartment trim
- Removing:
- Remove striker pin on rear backrest See Fig. 2.
- Remove floor lining.
- Remove luggage compartment light on left side See Fig. 1.
- Release luggage compartment side trim - 1 - from clips - 2 - (6x), starting at top rear.
- Installing:
- Fasten retainer tab - 3 - in C - pillar trim.
- After installing, ensure seal is positioned correctly
2 - Clip
3 - Retainer tab

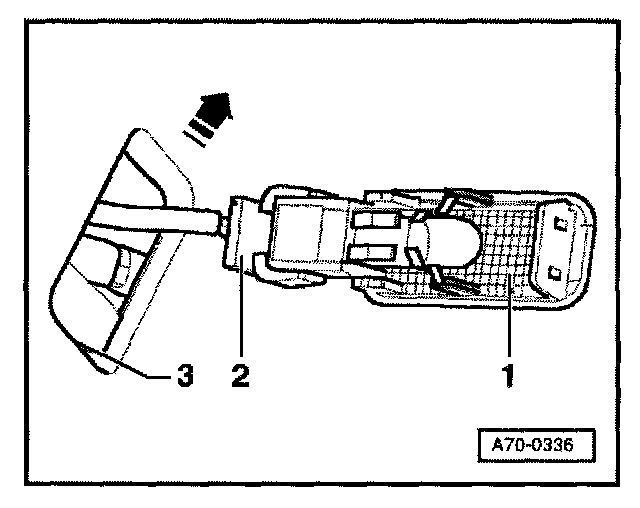

Fig. 1 Removing luggage compartment light







Arrow indicates direction of travel.
- Using screwdriver, pry out light - 1 - at item - 3 -.
- Unplug connector - 2 -.
