Disassembly and Assembly

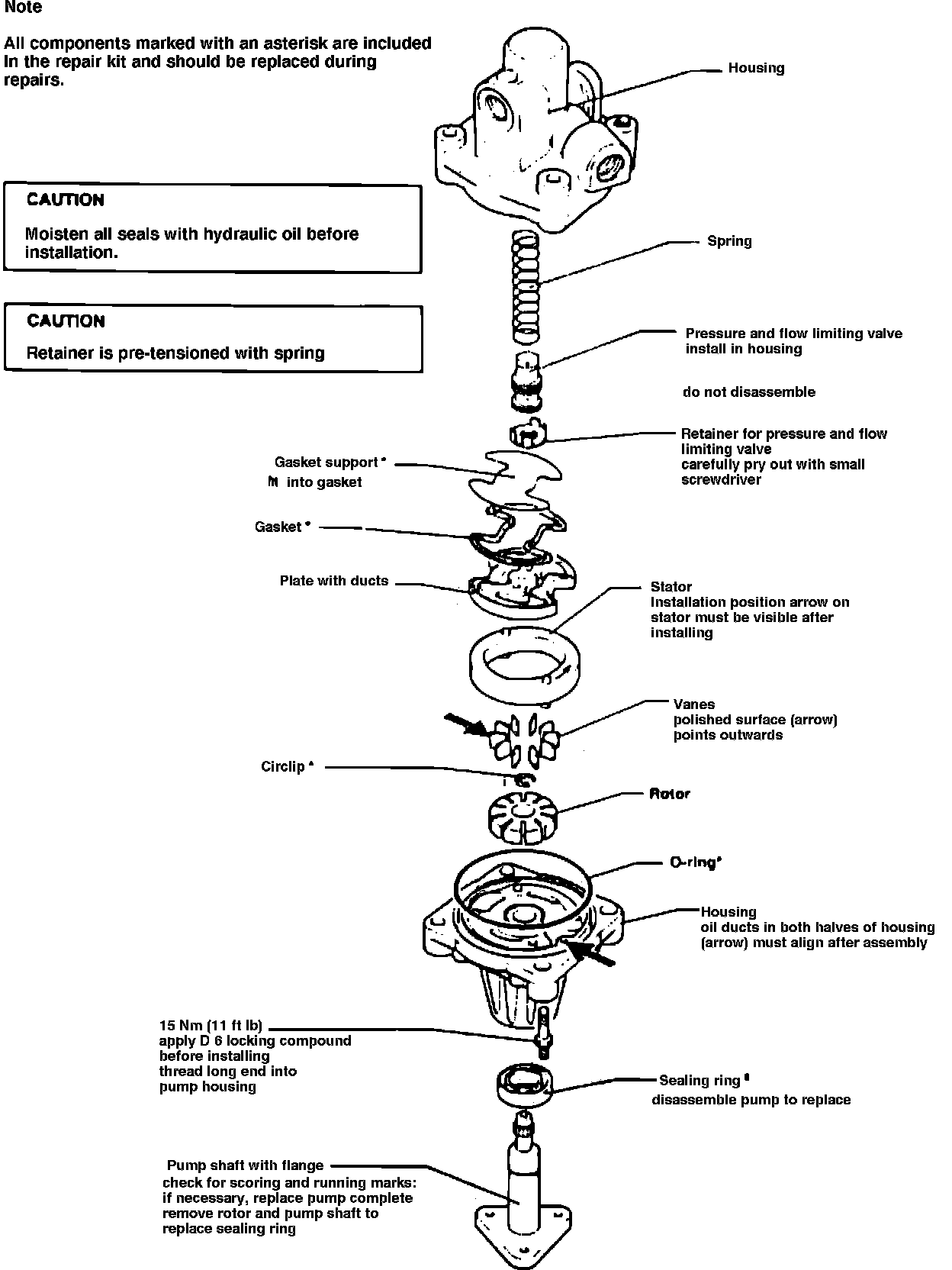

Fig. 3 Power Steering Pump:
On vehicles equipped with airbag, prior to any service being performed on steering components, disarm airbag system, refer to Air Bags and Seat Belts/Air Bags (Supplemental Restraint Systems)/Service and Repair.
Refer to Fig. 3 for service.
