Fuse/Relay Panel Connector Identification

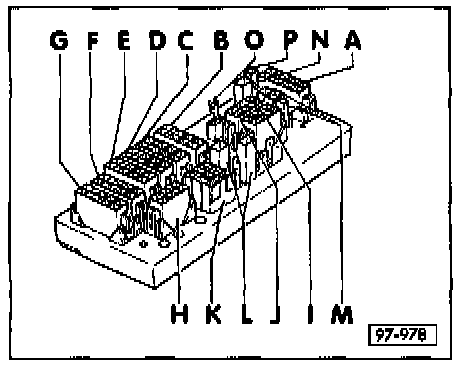

Fuse/Relay Panel Connector Identification

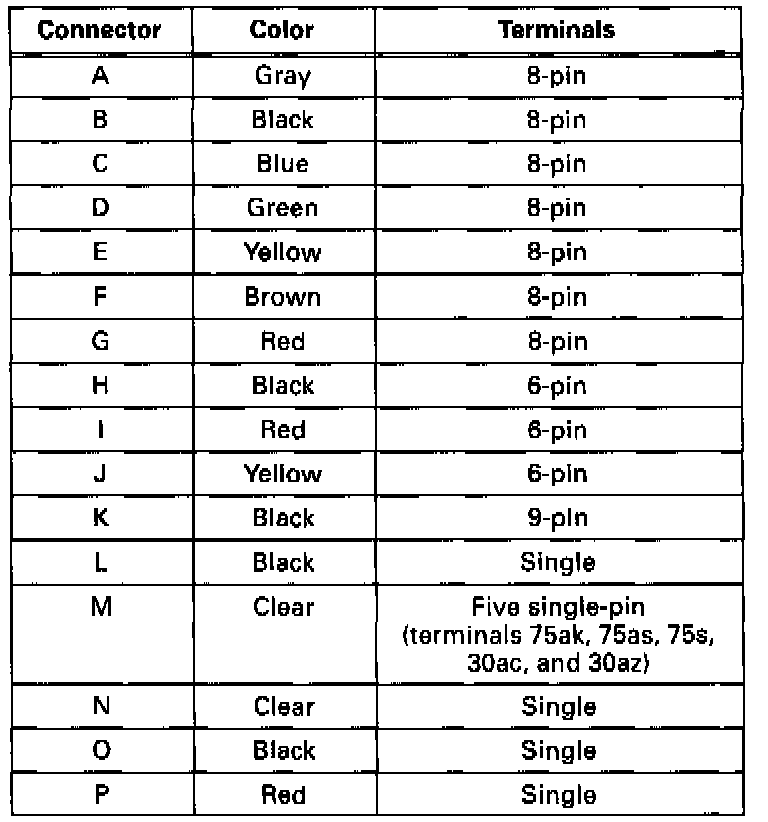

Connector Legend:
