Home >> Audi >> 1996 >> Cabriolet V6-2.8L (AFC) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> 097 Transmission

097 Transmission

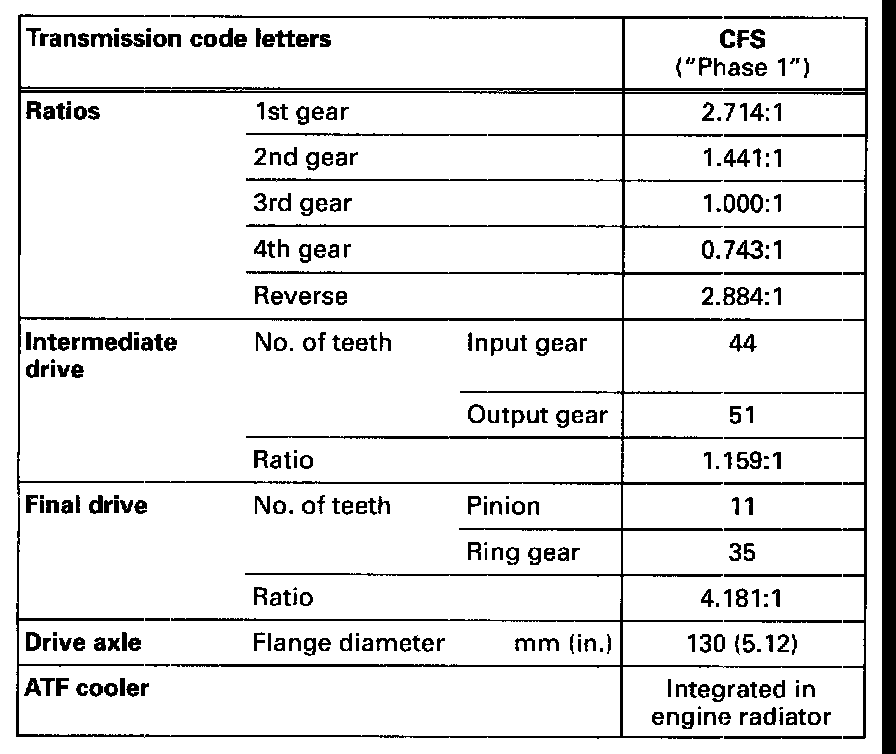

Code Letters, Engine/transmission Applications, Ratios, Equipment I:

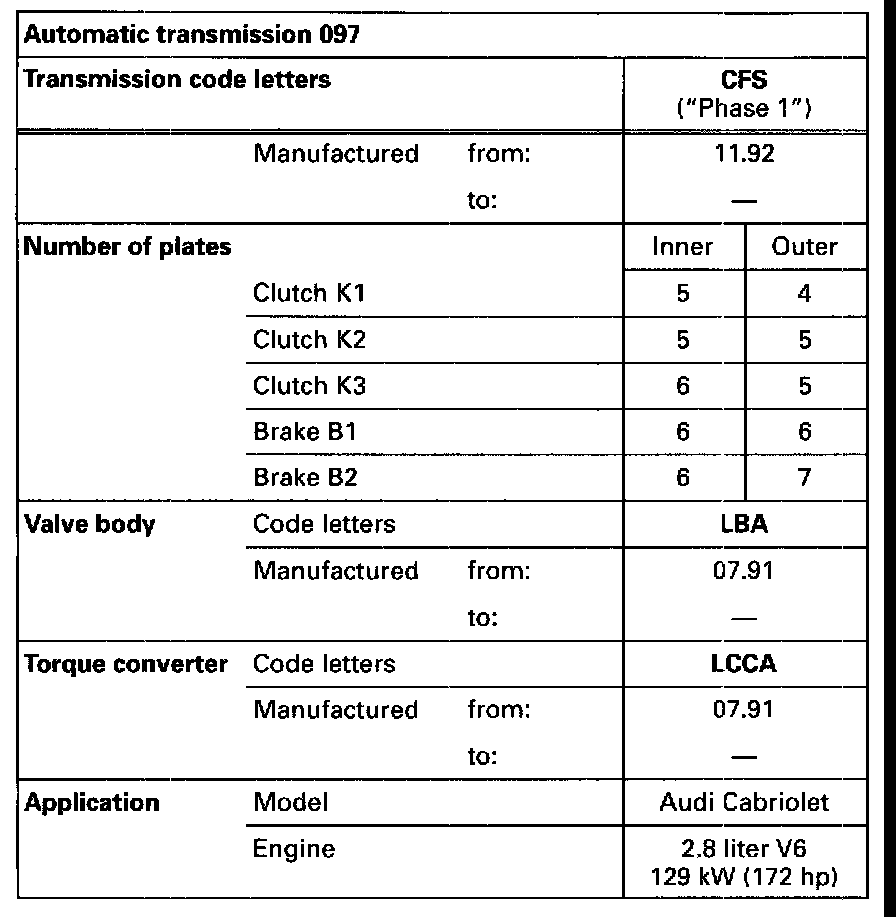

Code Letters, Engine/transmission Applications, Ratios, Equipment II:
