Removing cruise control Brake Pedal Position (BPP) switch





- Remove lower left instrument panel cover.
- Disconnect wire connector and vacuum hose from switch.

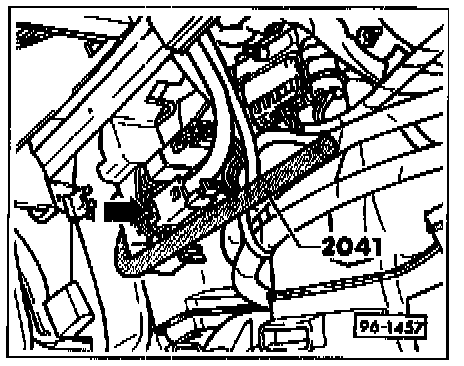

- Use special tool 2041 or equivalent (locally available) to remove switch (arrow) or firmly grasp switch with hand and pull from bushing.
