Air Injection Pump: Description and Operation

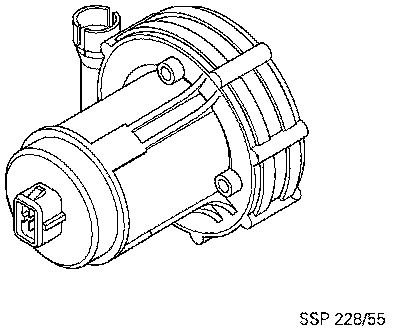

Secondary Air-Injection Pump V101:

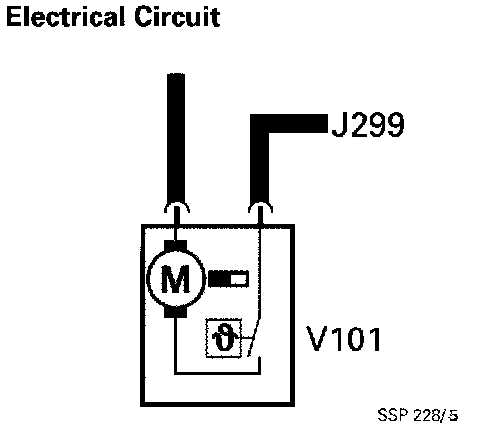

Electrical Circuit - Secondary Air-Injection Pump V101:

SECONDARY AIR-INJECTION PUMP V101:
Operation of the secondary air-injection pump is controlled via relay. This pump furnishes the mass air flow for the secondary air-injection system.
