Measuring Value Block Overview Chart

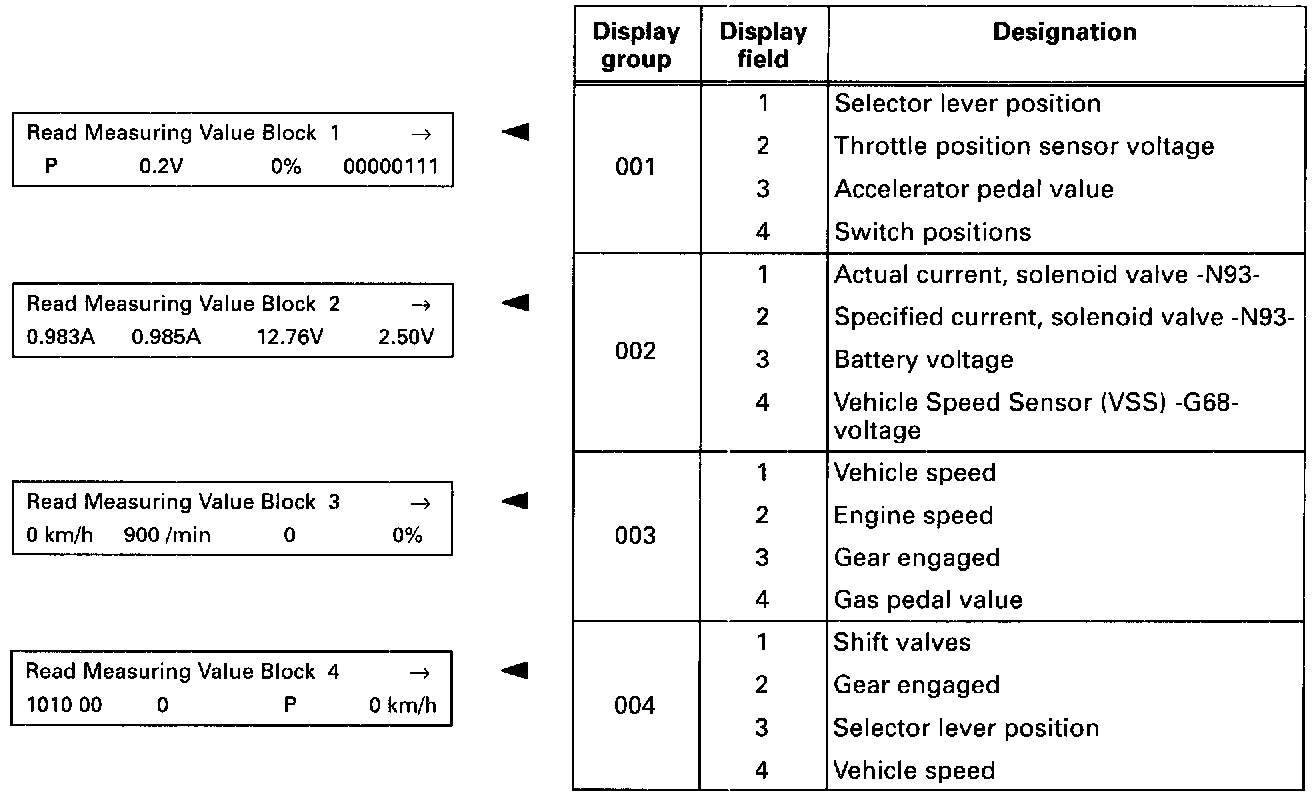

Display Groups 001 - 004

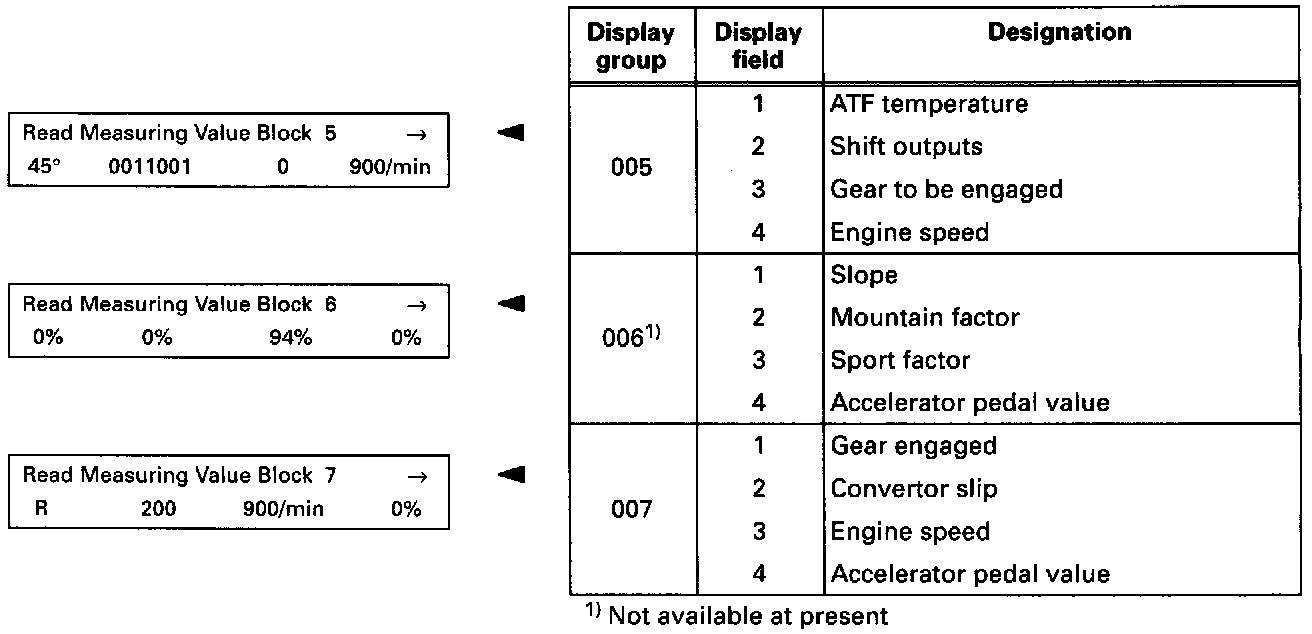

Display Groups 005 - 007

Indicated on display:

Read Measuring Value Block 1 ->
1 2 3 4

If the values are as specified in all the display fields:
- Press -> button.

Indicated on display:

Rapid data transfer HELP
Select function XX
