Front Frame With Glass, Removing and Installing

Front frame with glass, removing and installing (VDO)

- Remove instrument cluster. Service and Repair

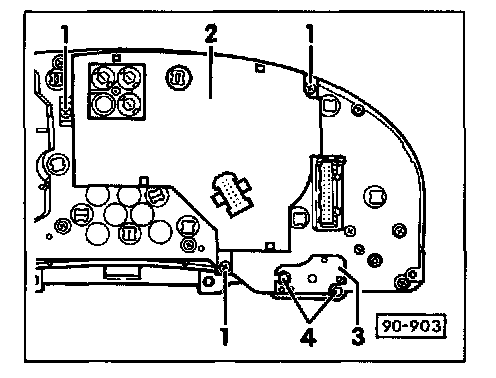

- Remove hex nuts -4- with washers and remove instrument panel light dimmer switch 3.
- Remove screws -1- and remove Mini Check system display unit 2

CAUTION! The printed circuit is fragile. me care in removing, or handling, or damage to the circuits will result.

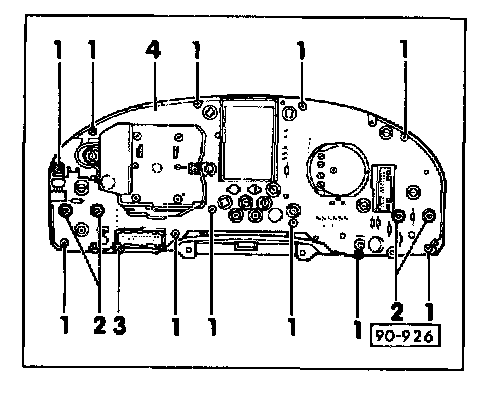

- Remove screws -1- and nuts -2-.
- Release latch -3- and carefully remove printed circuit -4-.
- Remove tachometer and speedometer mounting plates from front frame.
- Install in reverse order of removal.
