Front Frame With Glass, Removing and Installing

Front frame with glass, removing and installing (Nippon Seiki)

- Remove instrument cluster. Service and Repair

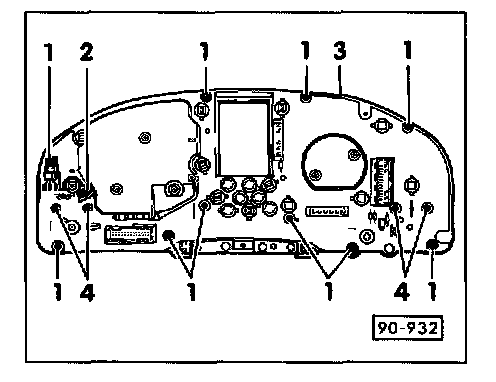

- Remove hex nuts -4- with washers and remove instrument panel light dimmer switch -3-.
- Remove screws -1- and remove Mini-Check system display unit -2-.




- Remove screws -1- and -4-
- Disconnect speedometer harness connector -2-.

CAUTION! The printed circuit is fragile. Use extreme care in removing, installing or handling, or damage to the circuit will result.

- Carefully remove printed circuit -3-.

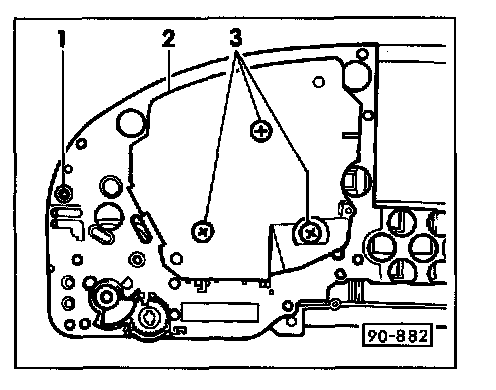

- Remove speedometer mounting plate screw -1-.
- Remove speedometer mounting plate -2- and speedometer.
- Do not remove speedometer screws -3-.

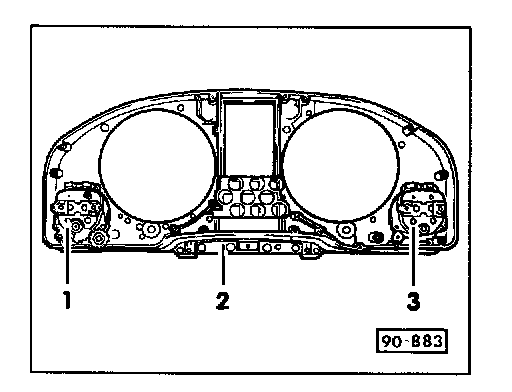

- Remove fuel gauge -1- from front frame -2-.




- Remove tachometer mounting plate screw -3-.
- Remove tachometer mounting plate -2- and tachometer.
- Do not remove tachometer screws -1-.




- Remove Engine Coolant Temperature (ECT) gauge -3- from front frame -2-.
- Install in reverse order of removal.
