Fresh Air Intake Duct Temperature Sensor -G89-, Replacement

Intake Temp. Sensor G89:

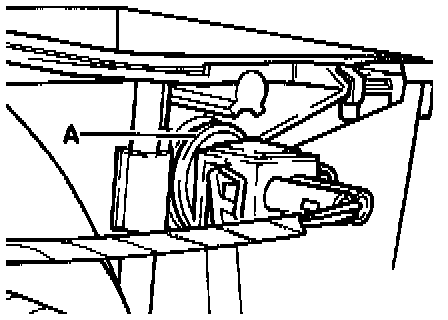

NOTE: Image shows Temperature Sensor with heater and evaporator housing removed.

- Remove right-side plenum tray.
- Remove grill from fresh air intake duct.
- Remove glove box, See 'Body and Frame, Interior Trim, Glove Compartment.'
- Twist temperature sensor -A- and remove from duct.

Install in reverse order of removal noting the following:
- Spray seal with silicone before installing.
