A/C Control Head,Illumination Bulbs, Replacement
Control Head Lamps:
- Remove A/C control head.
- Rotate lamp 90 °(1/4-turn) and remove from holder.

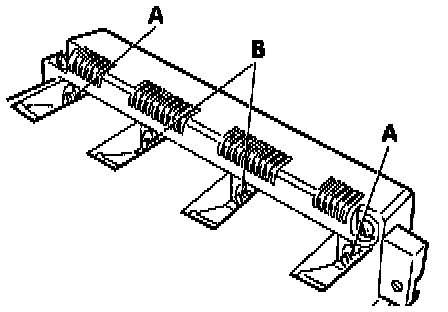

- Lamps -A-: light up operating buttons
- Lamps -B-: light up display panels
- Remove A/C control head.
- Rotate lamp 90 °(1/4-turn) and remove from holder.
- Lamps -A-: light up operating buttons
- Lamps -B-: light up display panels
