Oil Pan: Service and Repair

CAUTION:
^ DO NOT overfill with oil past the MAX mark on the OR dipstick Damage to the three way catalytic converter could result
^ Oil filters for earlier and later version lubrication systems are NOT interchangeable.

NOTE:
^ Always replace gaskets and seals.
^ Replacing crankshaft oil seals.
^ Checking oil pressure and oil pressure switches.

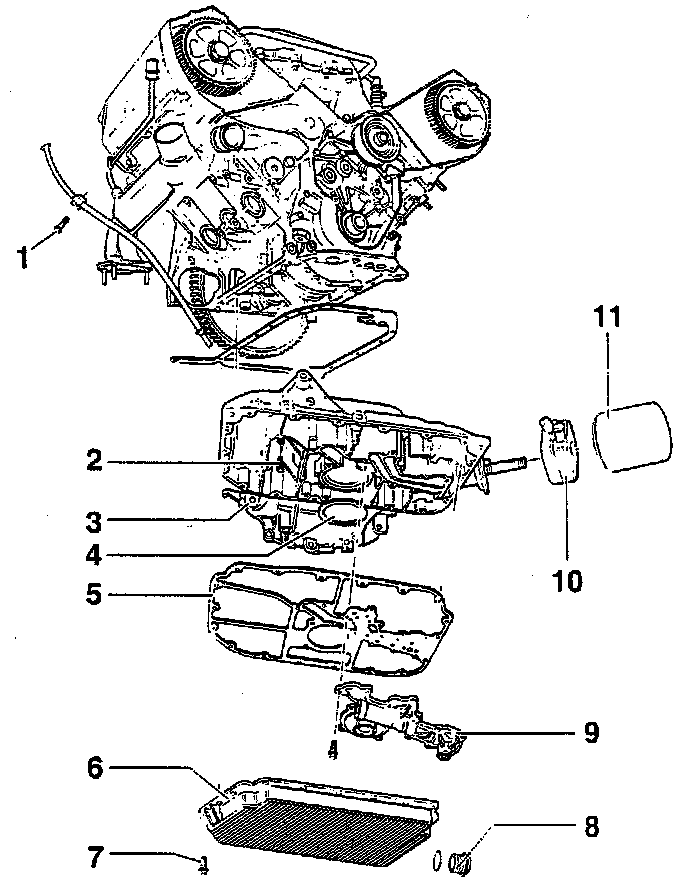

1 Bolt
- Tighten to: 10 Nm (7 ft. lbs.)
2 Bolt
- Tighten to: 10 Nm (7 ft. lbs.)
3 Oil pan, upper
4 Pick-up strainer
- Locks into upper oil pan with three lock tabs
5 Seal
6 Oil pan, lower
7 Bolt
- Tighten to: 10 Nm (7 ft. lbs.)
8 Drain plug
- 40 Nm (30 ft. lbs.)
9 Cover
- With integrated 5 bar (72 psi) and 11 bar (159 psi) pressure relief valves
10 Oil cooler
11 Oil filter
- NOT interchangeable with older version
- Revised lubrication system requires a different oil filter

CAUTION: Part numbers are for reference only. Always check with your parts supplier for the most up-to-date information.
