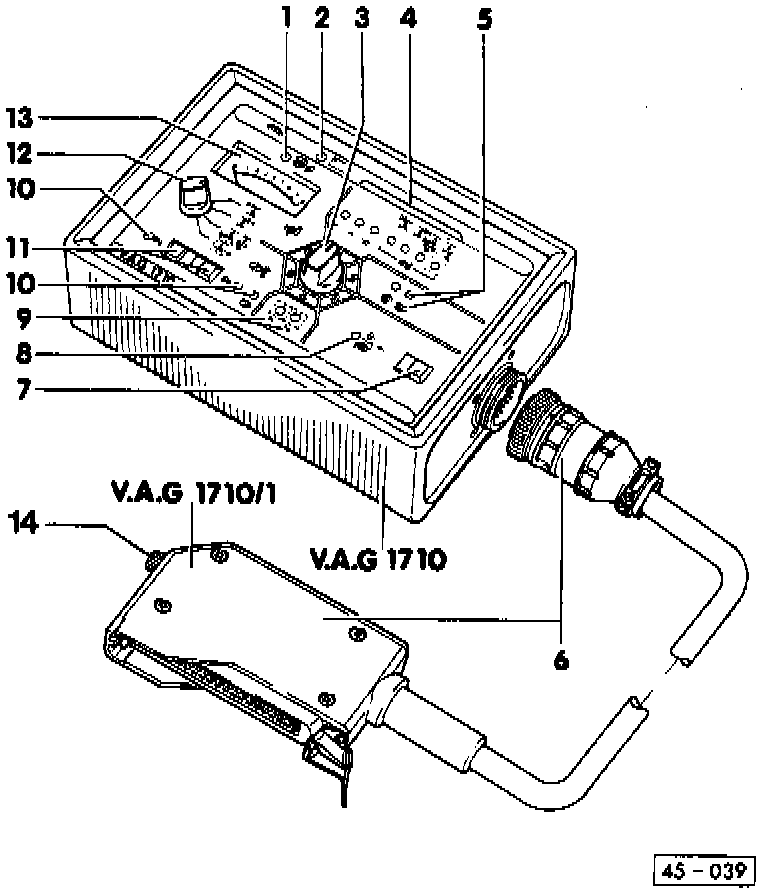

VAG 1710 Tester Discription

NOTE: Malfunctions are displayed by LEDs, except for ABS wheel speed sensor signals, which are read from analog display

1 LED display
- Wheel speed in program switch position 6
2 LED display
- Battery voltage
3 Test selector switch
4 LED displays (7)
- Test selector switch position 1
5 LED displays (2)
- Test selector switch position 2
6 VAG 17 10/1 adapter cable
- With coding switch
- To connect to ABS wiring harness (in vehicle)
7 Button
- To control ABS return flow pump relay -J105-
- Test selector switch position 3
8 LED display
- Test selector switch position 3
9 LED displays (2)
- Test selector switch position 4
10 LED displays (3)
- Test selector switch position 5
11 Keys (2)
- To activate the solenoid valve functions
- To maintain and release pressure in selector switch position 5
12 Rotary switch
- To select individual wheels
- Functional in test selector switch positions 5 and 6
13 Analog display instrument
- For program switch position 6
14 Coding switch
- Part of VAG1710/1 adapter cable ==> page 01-40
