Home >> Audi >> 1996 >> Cabriolet V6-2.8L (AFC) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Testing With VAG 1710 ABS Tester >> Troubleshooting After Checking With VAG 1710 >> From Test Step 2

From Test Step 2

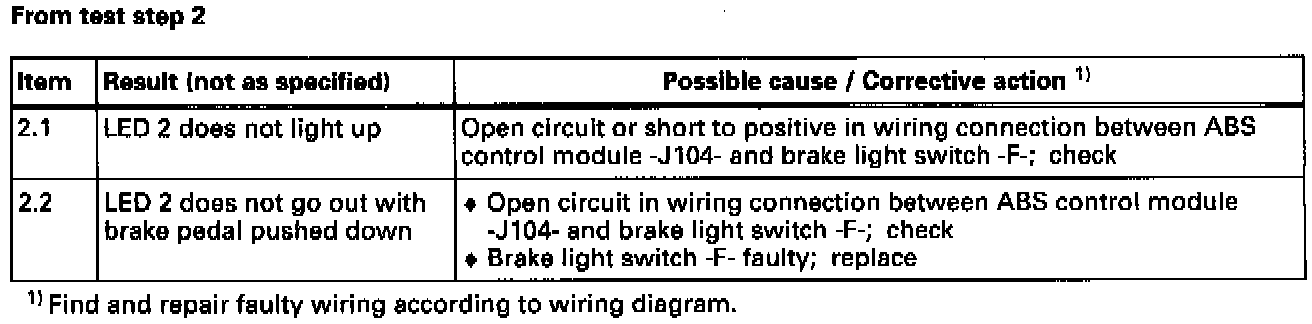

Troubleshooting Chart For Test Step 2:
