FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Audi
>>
1996
>>
Cabriolet V6-2.8L (AFC)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Testing With VAG 1710 ABS Tester
>>
Troubleshooting After Checking With VAG 1710
>>
From Test Step 1
From Test Step 1

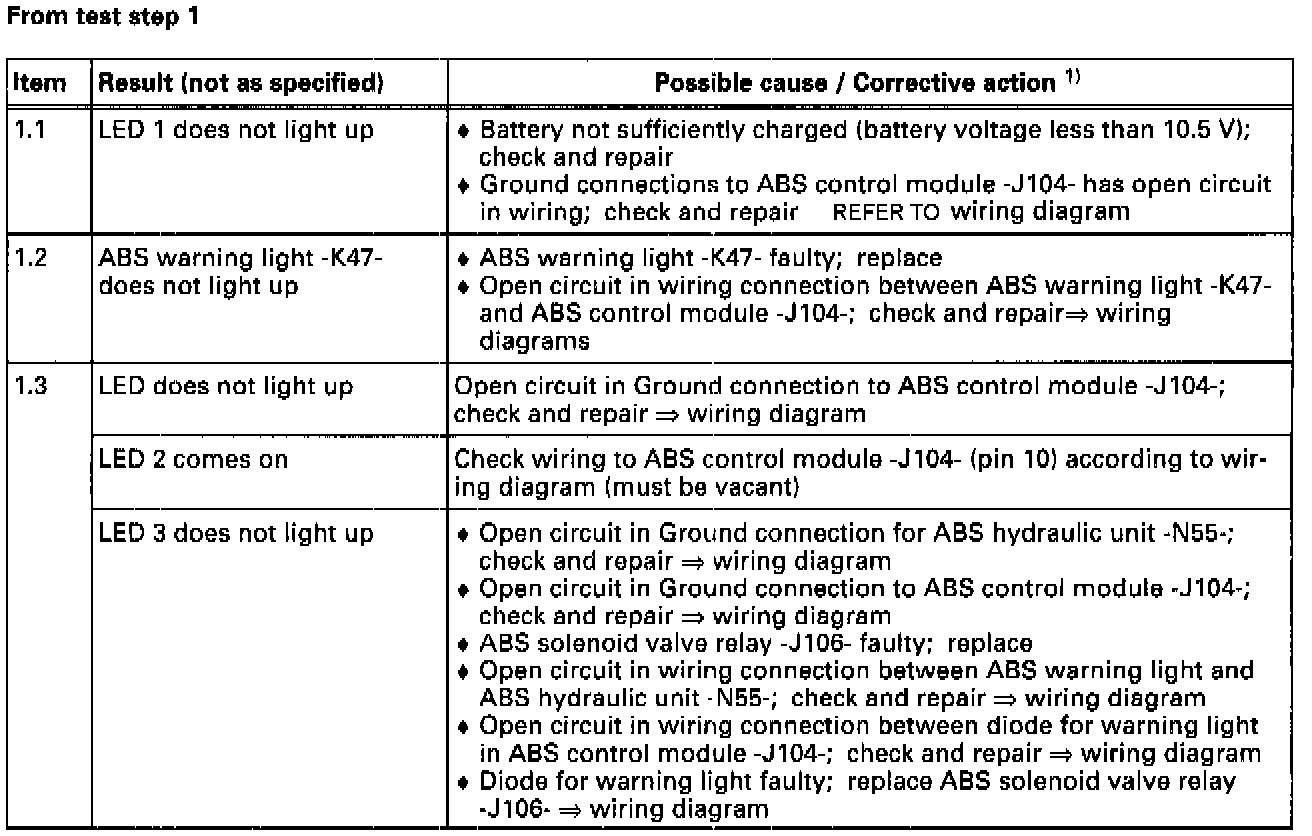

Troubleshooting Chart For Test Step 1 (Part 1 Of 2):

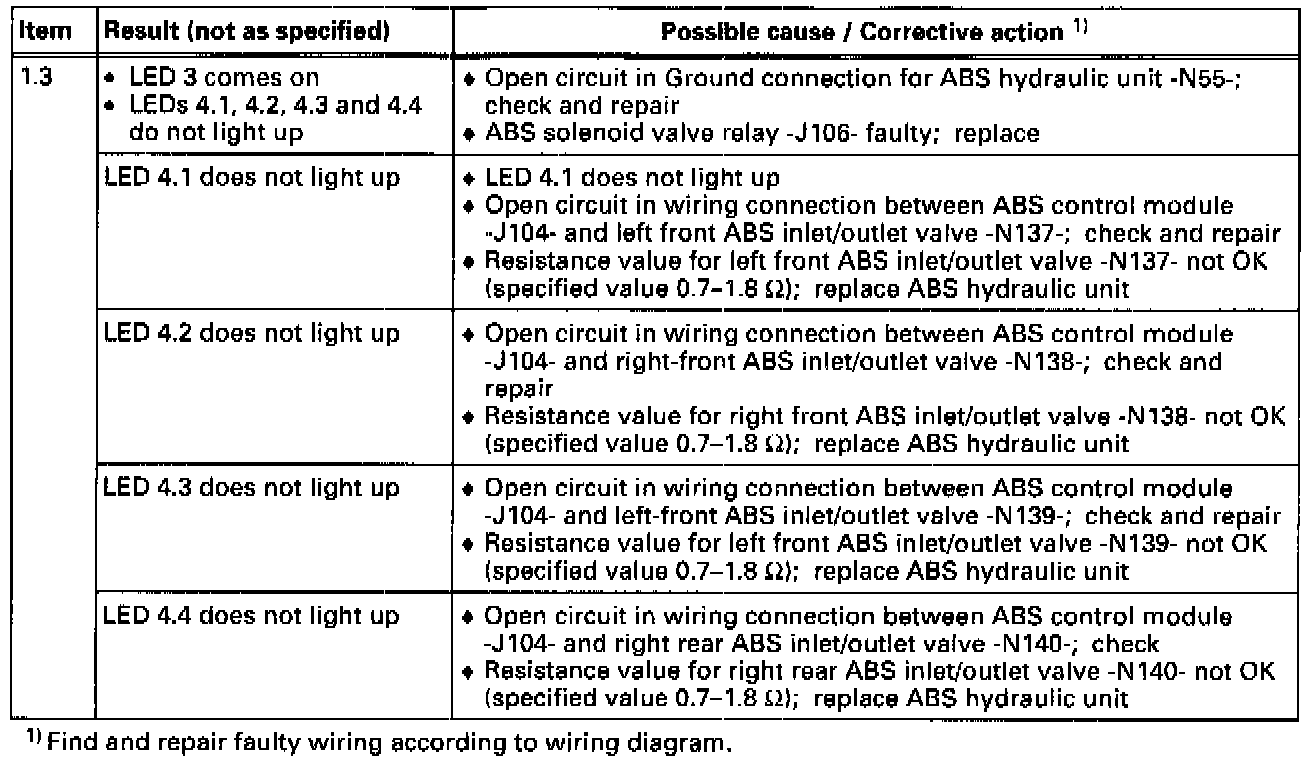

Troubleshooting Chart For Test Step 1 (Part 2 Of 2):
