Adjusting Coding Switch on VAG 1717/1 ABS Tester

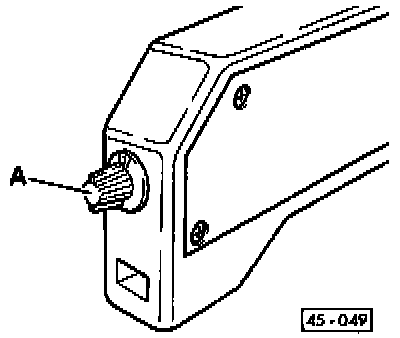

Adjust coding switch -A- on connector.
Front-wheel drive: set to position 2
