Track 15-27

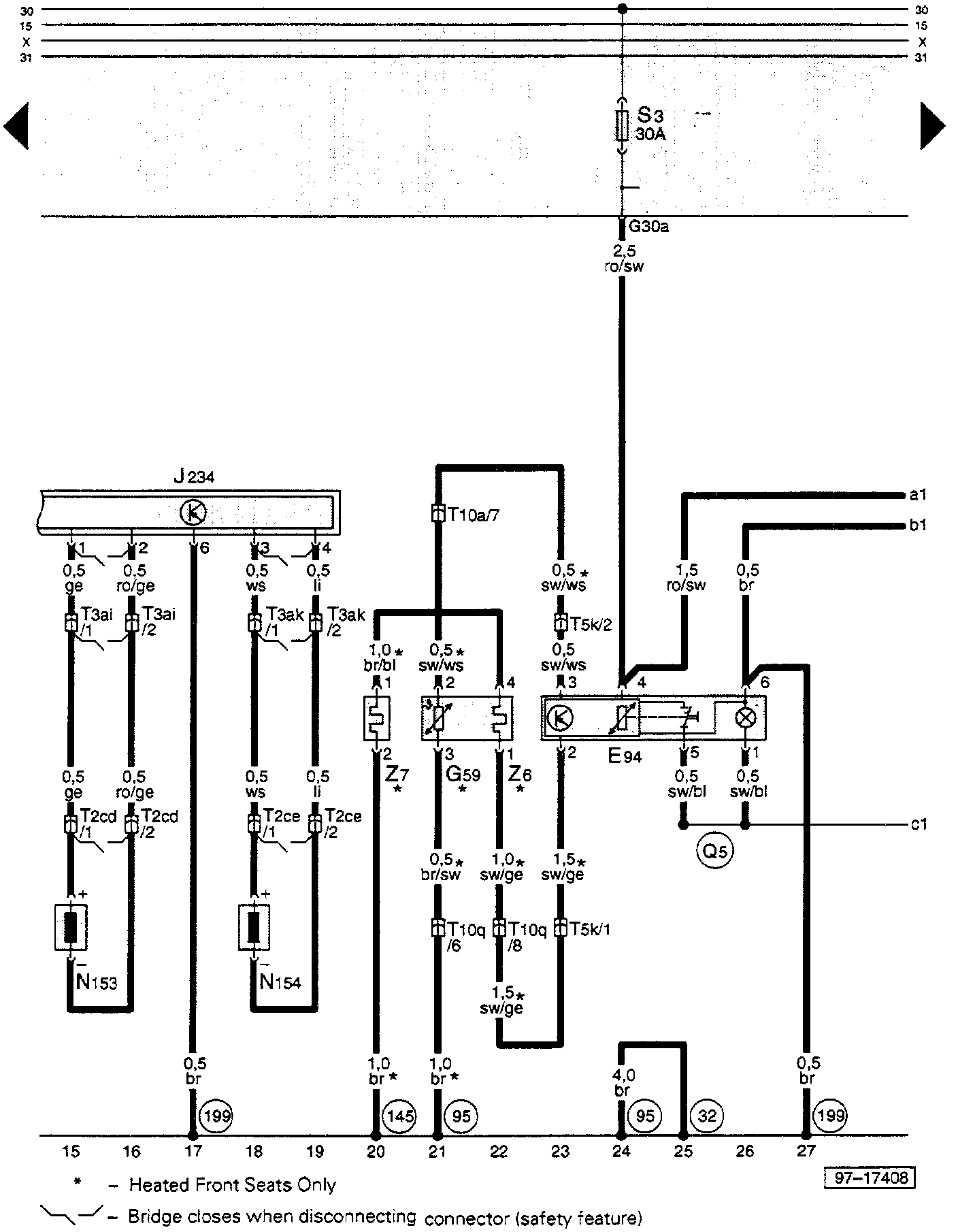

Integral Safety Seat And Seat Belt Tensioner - Track 15-27:

COMPONENTS
J234 - Airbag Control Module
G59 - Driver Seat Heater Control Switch
E94 - Heat Regulating Switch, Driver Seat
Z6 - Heat Element, Driver Seat
Z7 - Heat Element, Driver Backrest
N153 - Left Seat Belt Tensioner Igniter
N154 - Right Seat Belt Tensioner

CONNECTORS
T2cd - Wire Connector, double, red, below passenger's seat
T2ce - Wire Connector, double, red, below driver's seat
T3ai - Wire Connector, 3 Point, behind instrument panel, left
T3ak - Wire Connector, 3 Point, behind instrument panel left
T5k - Wire Connector, 5 Point, yellow, connector station in auxiliary relay panel
T10q - Wire Connector, 10 Point, black, below driver's seat

GROUND CONNECTIONS

NOTE: Grounds connections are indicated on the diagram by a numeric code inside a circle

32 - Ground connection, behind instrument panel, left
95 - Ground connection -1-, in seat adjuster wiring harness
145 - Ground connection -3-, in heated seats panel wiring harness
199 - Ground connection -3-, in instrument panel wiring harness

HARNESS SPLICES

NOTE: Harness splices are points inside a wiring harness where two or more wires are crimped and/or soldered together. Harness splices are indicated on the diagrams by an alphanumeric code inside a circle

Q5 - Plus connection (58) in power window/central locking system and door contact switch wiring harness
