Convertible Top Hydraulic Cylinder: Locations

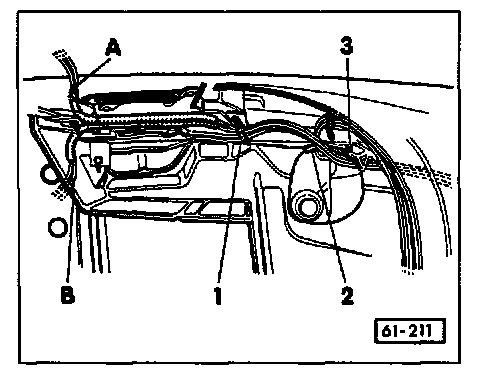

Right side hydraulic hose routing
A - Hoses to upper hydraulic cylinder
B - Hoses to lower hydraulic cylinder
1 - Tie wrap
2 - Edge protection

- Route hoses -A- (upper hydraulic cylinder) through storage compartment and into luggage compartment as shown.
- Install tie wrap -1-.

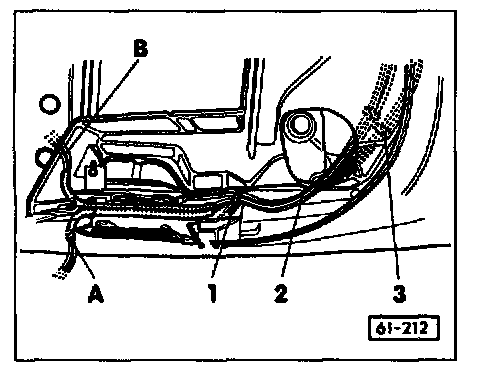

Left side hydraulic hose routing
A - Hoses to upper hydraulic cylinder
B - Hoses to lower hydraulic cylinder
1 - Tie wrap
2 - Edge protection

- Route hoses -A- (from upper hydraulic cylinder) through storage compartment into luggage compartment as shown.
- Install tie wrap -1-.

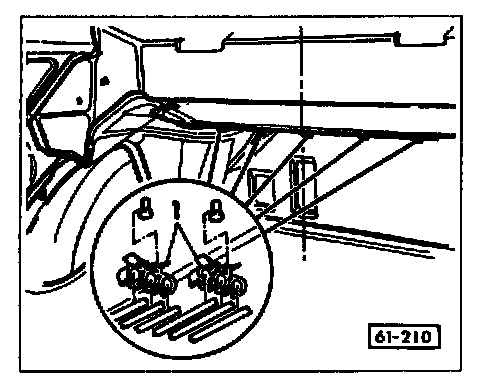

Hydraulic hose routing in luggage compartment
- Press hoses into clips -1-.

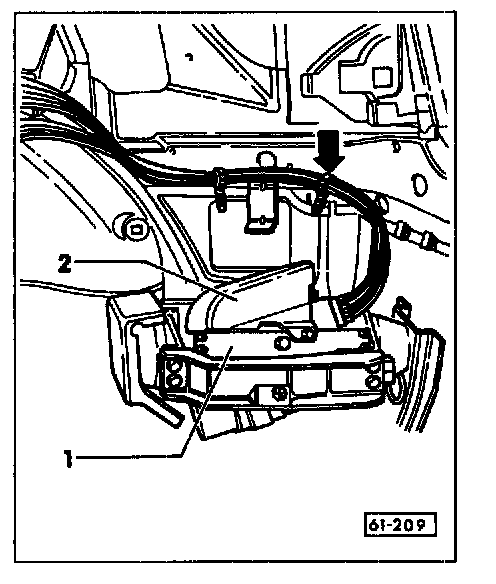

Hydraulic hose routing to hydraulic pump

Notes:
• Red marking must be below first tie wrap (arrow).
• Hydraulic hoses must not be twisted when installing.

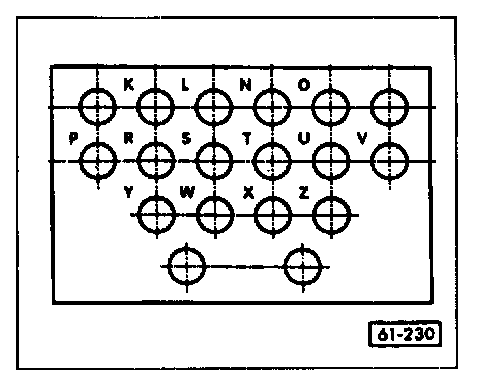

Hose connections for hydraulic pump

Connections are shown as seen from hose side.

Connections for upper hydraulic cylinders
P - Piston rod side, left
R - Piston rod side, right
U - Piston side, right
V - Piston side, left

Connections for lock assembly cylinders
P - Piston rod side, left
R - Piston rod side, right
U - Piston side, right
V - Piston side, left

Connections for storage compartment lid cylinder
S - Piston rod side
T - Piston side

Connections for lower hydraulic cylinders
Y - Piston rod side, left
W - Piston rod side, right
X - Piston side, right
Z - Piston side, left
