Trim Panel: Service and Repair

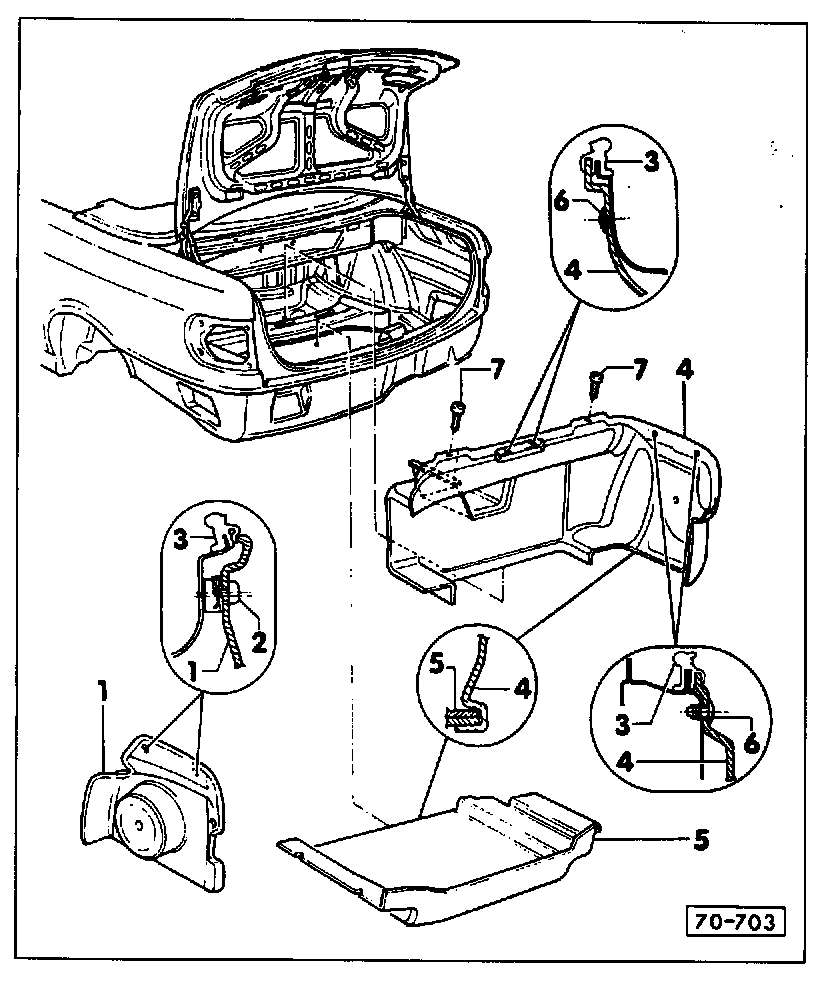

Luggage compartment trim, removing and installing

Note: The luggage compartment trim components must be removed before working on the hydraulic pump.





1 - Spare tire trim
• To remove, remove trim retainer -2- and remove trim
• Remove spare tire
2 - Trim retainer
3 - Rear lid seal
4 - Luggage compartment trim
Removing:
• Remove cover for rear cross panel (~ Fig. 1) and floor covering -5- before removing luggage compartment trim
• Pry out clips -6-
• Remove screws -7-
5 - Floor covering
• Remove cover for rear cross panel before removing floor covering
• When installing, floor covering must be pressed into luggage compartment trim -4- at bottom so it fits properly
6 - Clip
7 - Screw

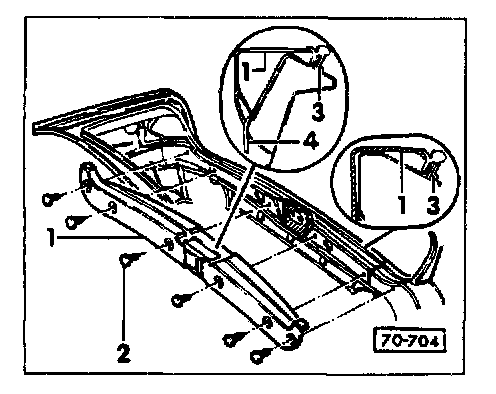

Fig. 1 - Removing And Installing Rear Cross Panel Cover:

1 - Rear cross panel cover
2 - Clips
3 - Seal
4 - Floor covering

- Pry out clips -2- and remove cover -1-.
When installing, seal -3- must be positioned over cover -1-.
