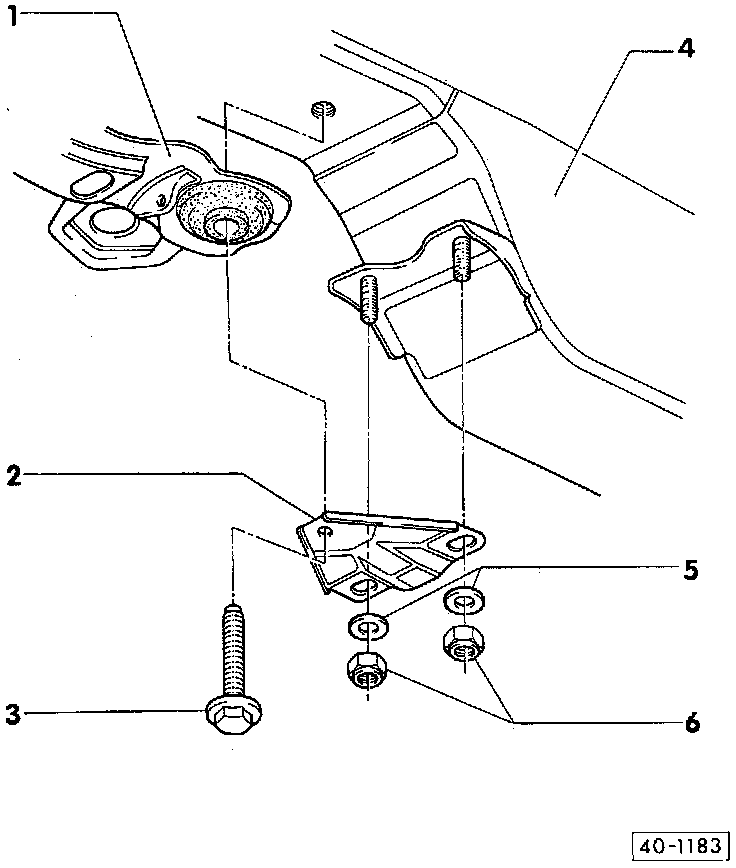

Rear Mount Bracket

1. Subframe
2. Support
- Always replace
- Bolt onto bracket of chassis member
3. Hex bolt
- Always replace
- Tighten to:
10 mm bolt: 35 Nm (26 ft lb) plus additional 1/4-turn (90°)
12 mm bolt: 70 Nm (52 ft lb) plus additional 1/4-turn (90°)
4. Chassis member
- With welded bracket for mounting support, item 2
5. Washer
- Always replace
6. Self-locking nuts
- Always replace
- Tighten to: 25 Nm (18 ft lb)
