P1506

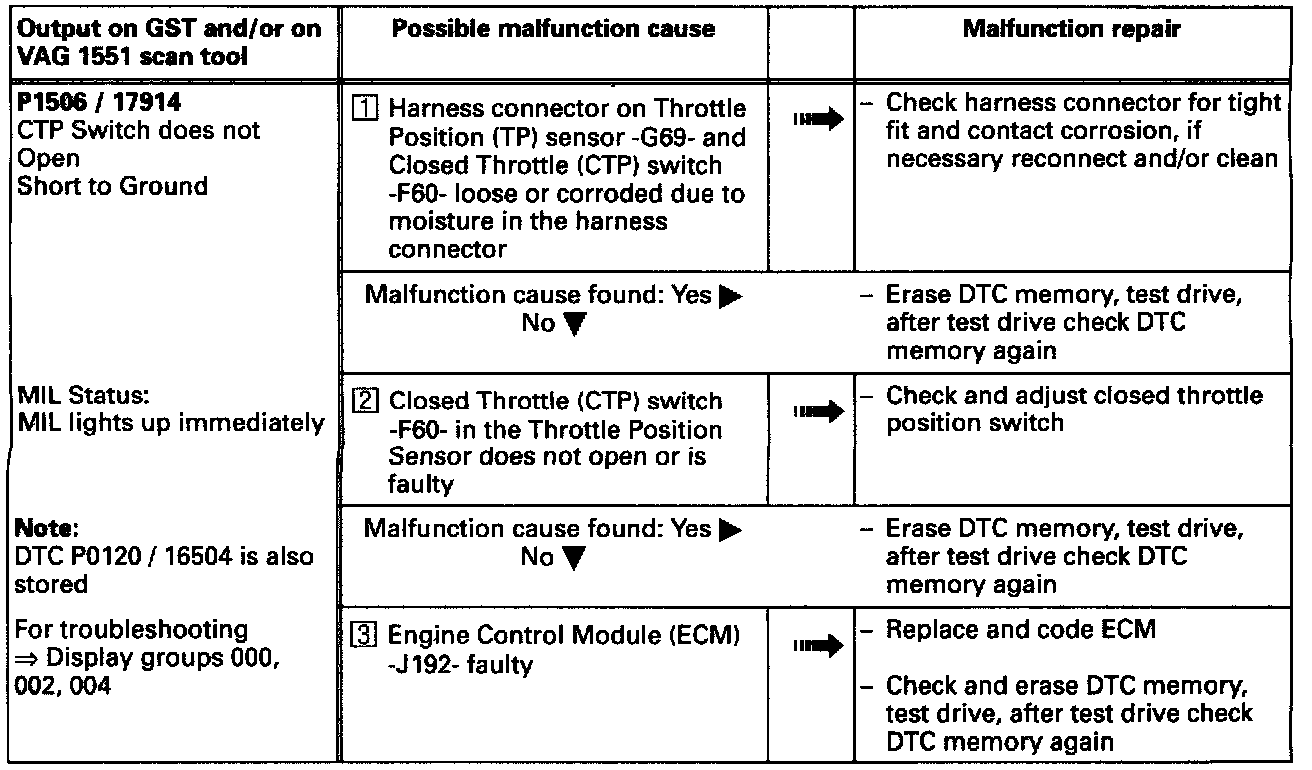

P1506
NOTE:
The diagnostic trouble code "P1506/17914" is set as soon as the throttle opening is greater than 7° and the closed throttle position switch is closed for longer than 3 sec.
