P0174
P0174
NOTE:

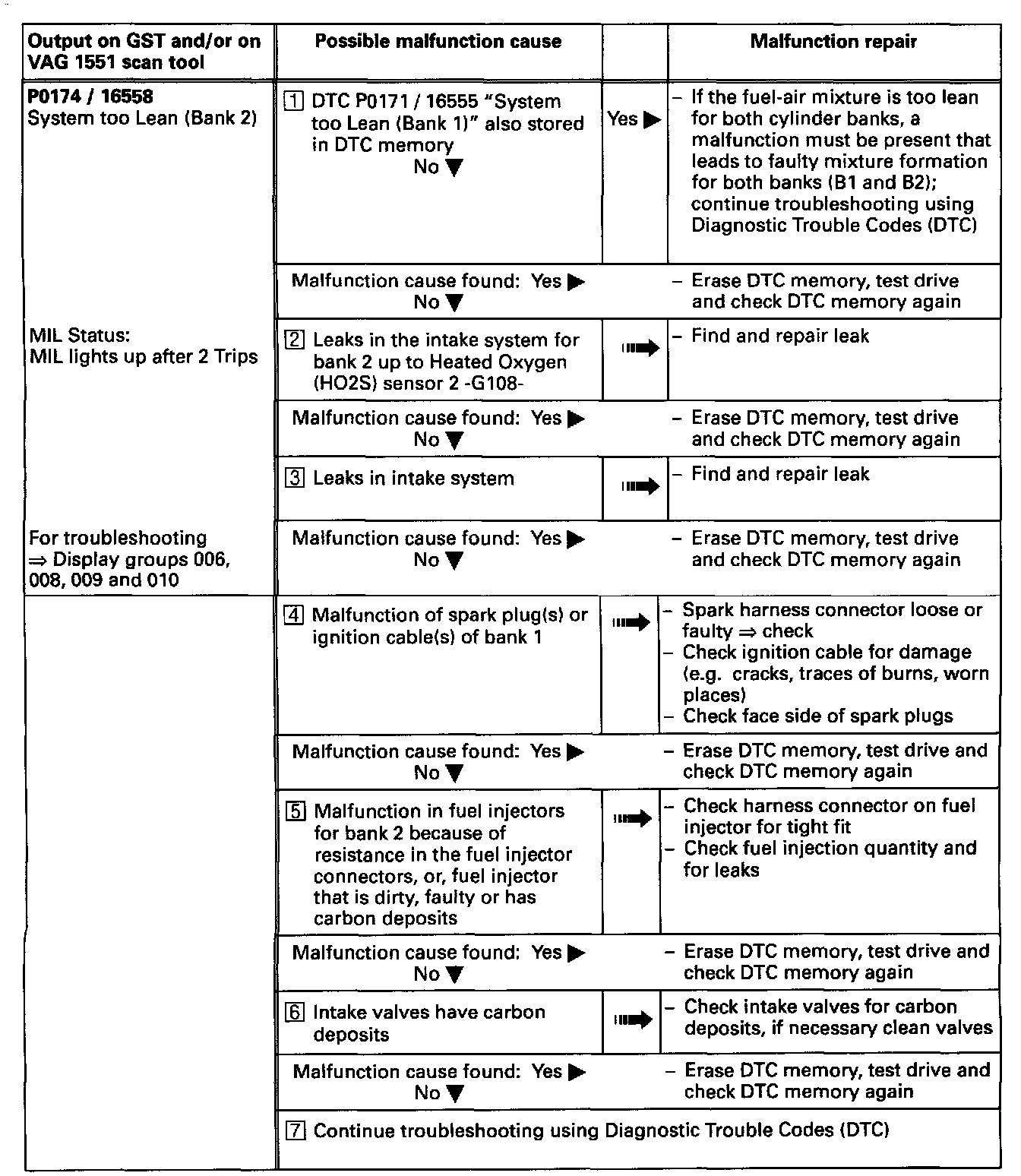

If the diagnostic trouble code "P0174/16558" is set, the oxygen sensor control has exceeded the learning value limit in the "rich" direction, but the Heated Oxygen Sensor
(HO2S)
still recognizes "mixture too lean".
