P0120

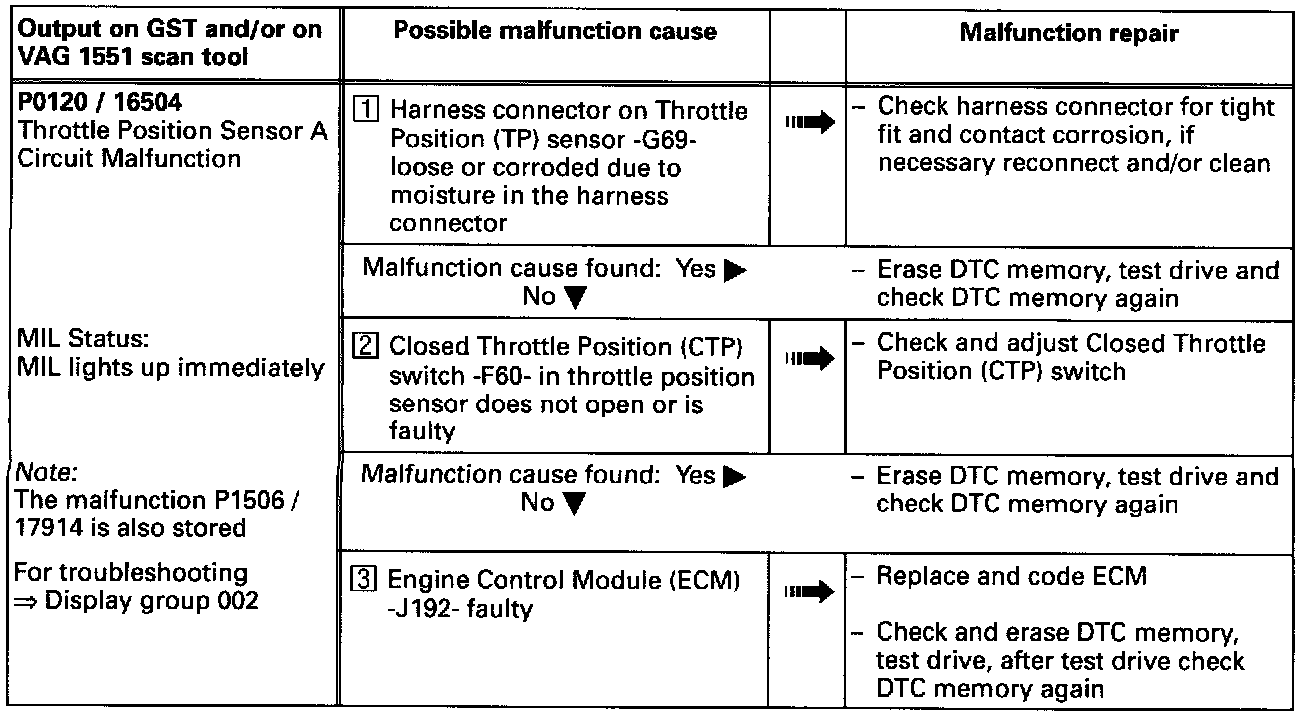

NOTE: The diagnostic trouble code "P0120/16504" is set, with idle switch closed, as soon as a position sensor signal voltage of over 0.72 volts is recognized for longer than 2 sec. (corresponds to a throttle opening of more than 7°).
NOTE: The diagnostic trouble code "P0120/16504" is set, with idle switch closed, as soon as a position sensor signal voltage of over 0.72 volts is recognized for longer than 2 sec. (corresponds to a throttle opening of more than 7°).
