DTC 16556
DTC 16556
NOTE:

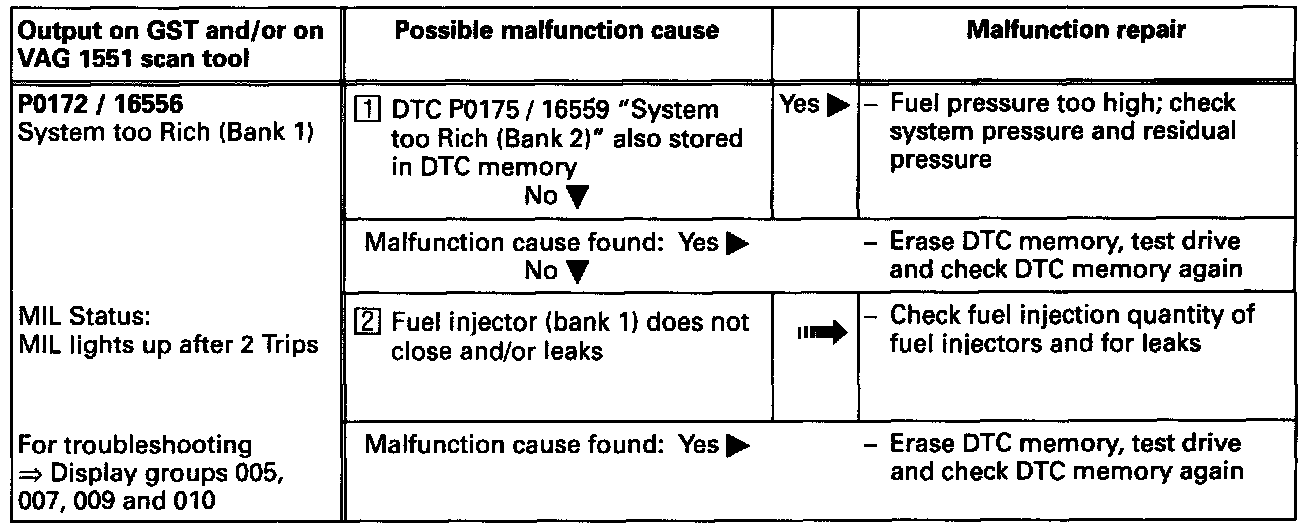

If the diagnostic trouble code "P0172/16556" is set, the oxygen sensor control has dropped below the learning value limit in the "lean" direction, but the Heated Oxygen Sensor
(HO2S)
still recognizes "mixture too rich".
