Home >> Audi >> 1996 >> Cabriolet V6-2.8L (AFC) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Engine Control System >> DTC 16507

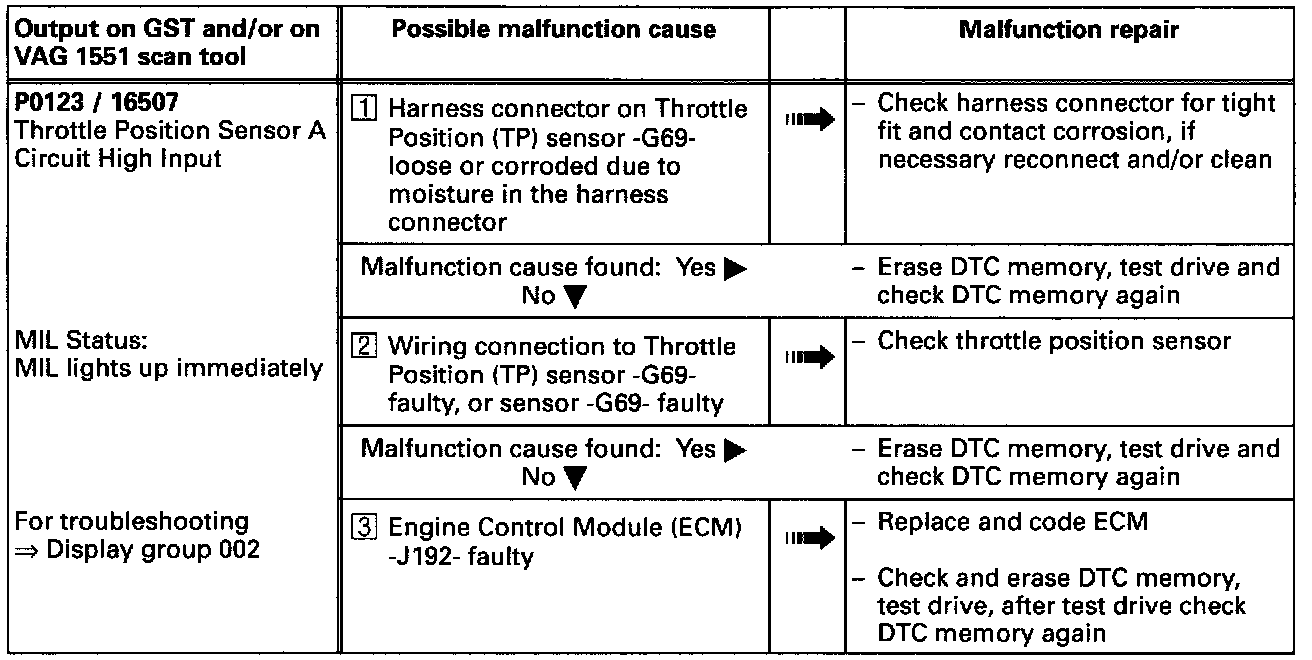

DTC 16507





NOTE: The diagnostic trouble code "P0123/16507" is set as soon as the signal voltage is greater than 4.9 volts for longer than 2 sec.
