Drain Plug: Locations

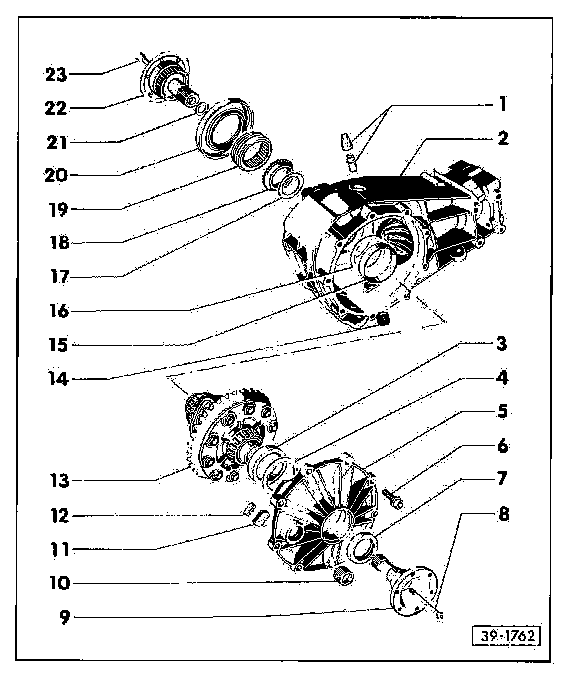

Rear final drive






10. Oil filler plug 25 Nm (18 ft lb)
14. Oil drain plug 25 Nm (18 ft lb)
