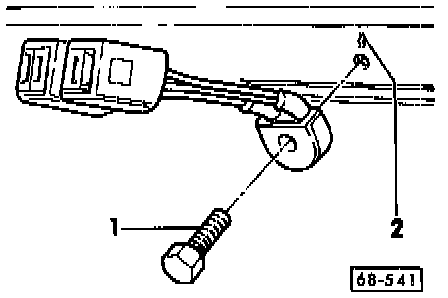

D-Attachment Point, Left-Rear Center







1 - Bolt
Tightening torque: 50 Nm (37 ft lb)
2 - Welded projection
