Passenger Side

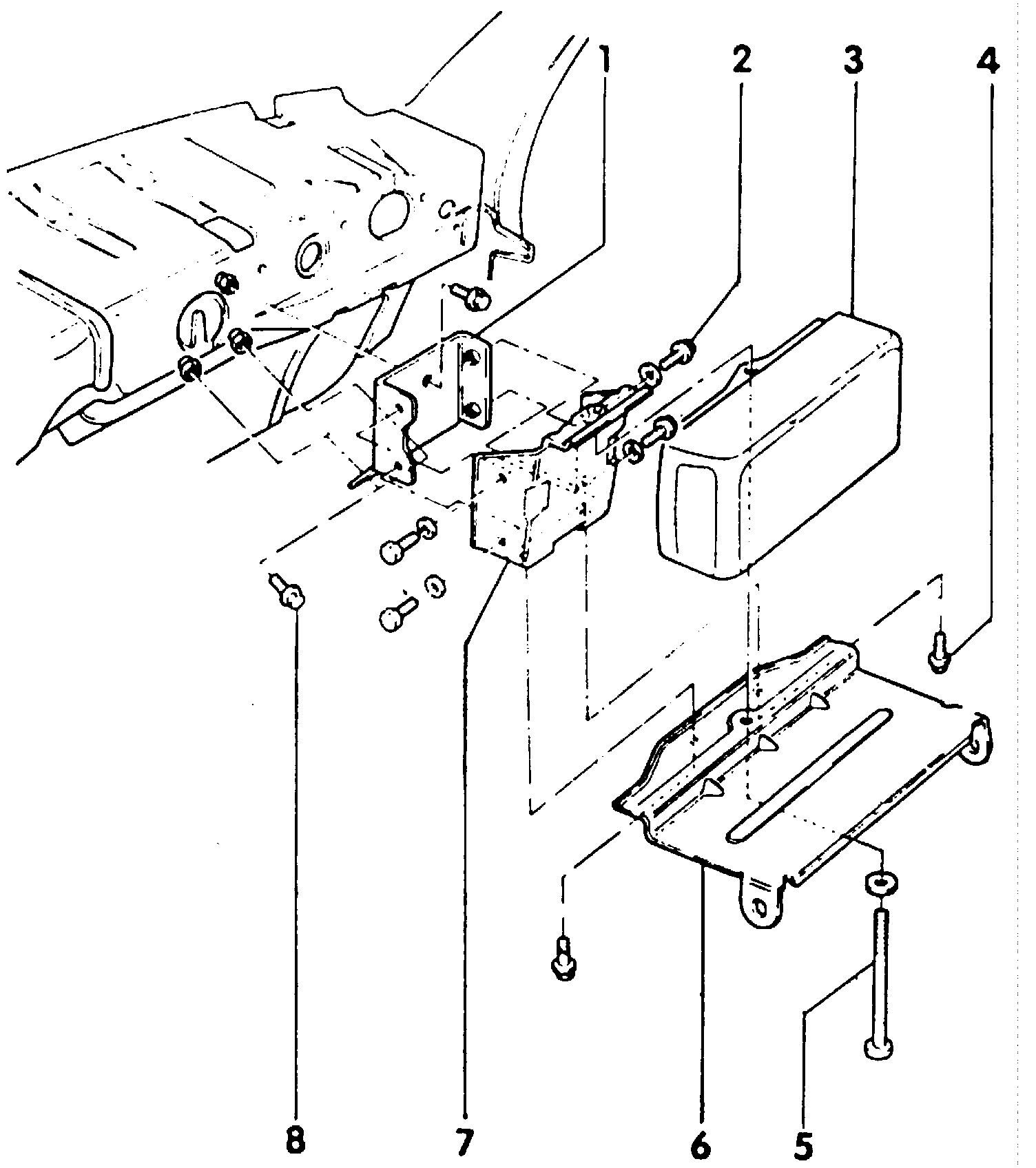

Fig. 7 Passenger's Air Bag Unit (1-Retaining Bracket, 2-Bolts, 3-Passenger Side Air Bag Unit, 4-Bolts, 5-Mounting Bolt, 6-Support Bracket, 7-Mounting Bracket, 8-Bolt).:

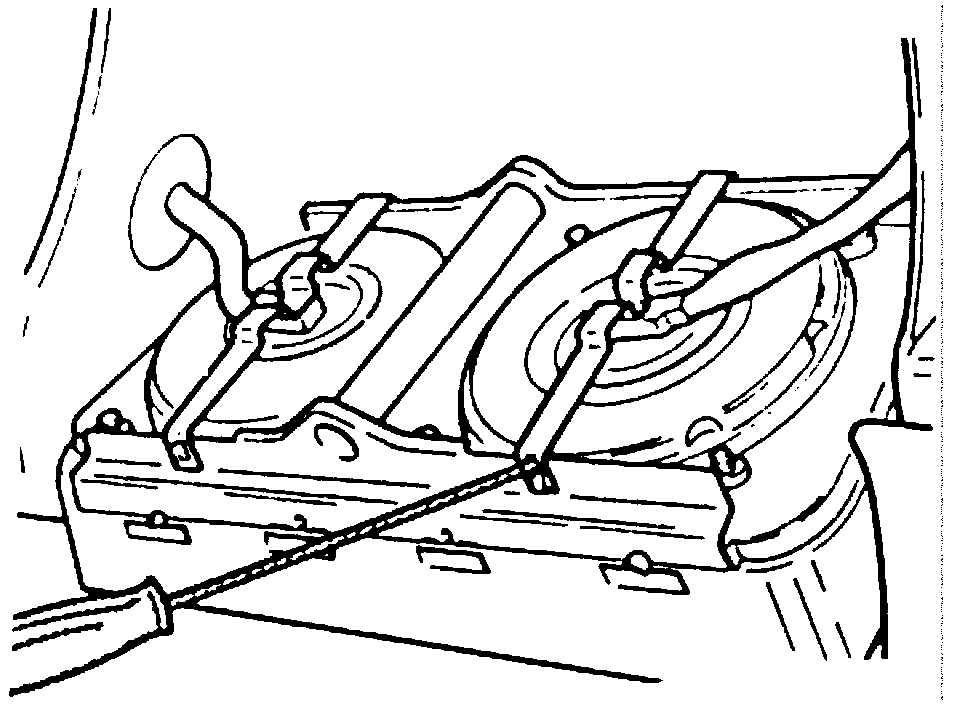

Fig. 8 Removing Passenger's Air Bag Connector Bracket:

1. Disarm air bag system as described under Air Bags (Supplemental Restraint Systems), Service and Repair.
2. Remove glove compartment.
3. Remove Passenger's air bag mounting bolts, Fig. 7.
4. Using a suitable flat blade screwdriver, pry bracket from air bag unit, Fig. 8.
5. Disconnect air bag unit electrical connector, then remove air bag unit. Store air bag unit in a secure place with impact cushion facing upward.
6. Reverse procedure to install. Tighten right air bag mounting bolt, then left mounting bolt. Tighten air bag unit attaching bolts to specifications.
