Home >> Audi >> 1995 >> 90CS Quattro V6-2.8L (AFC) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Testing >> Read Measuring Value Block (Function 08) >> Measuring Value Block Troubleshooting Charts >> Display Group 01, Channels 1 - 3

Display Group 01, Channels 1 - 3

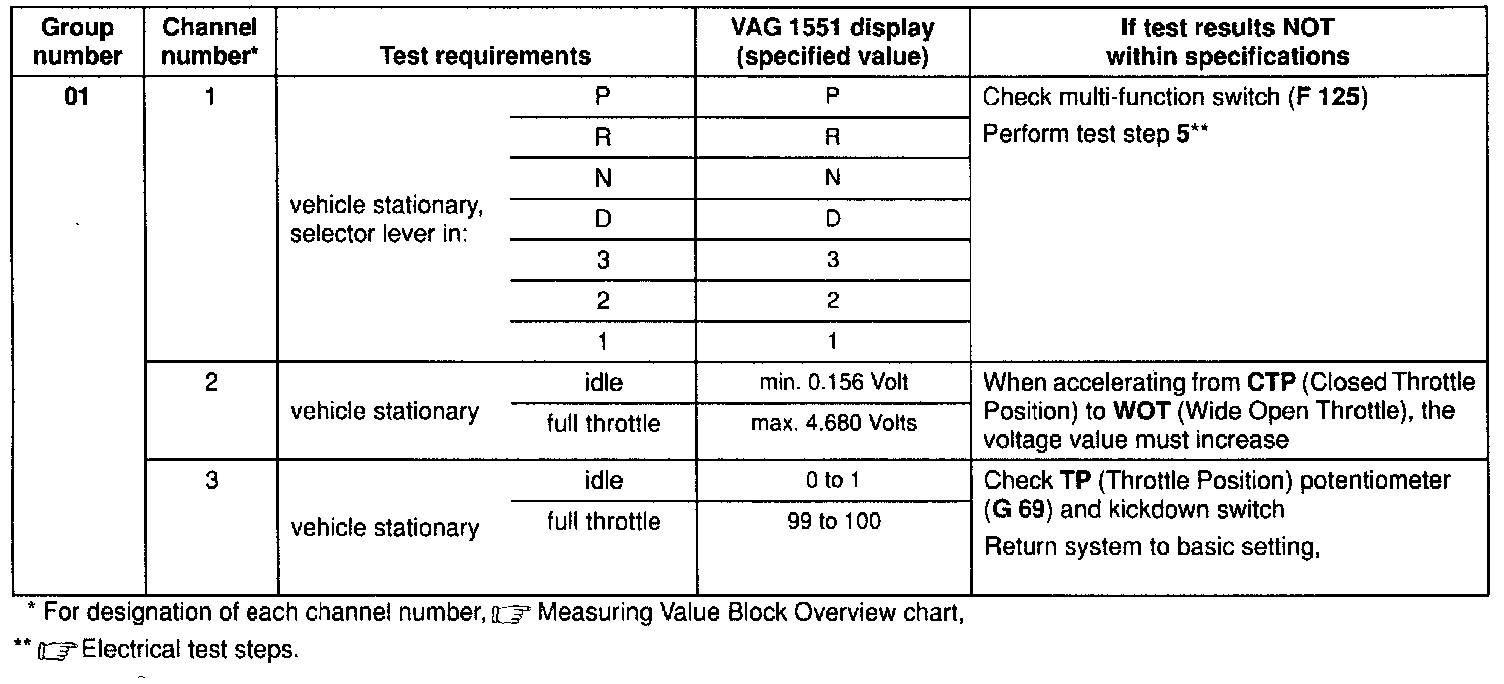

Troubleshooting Chart:
