Bowden Cables at Control Panels (Manual A/C Only)

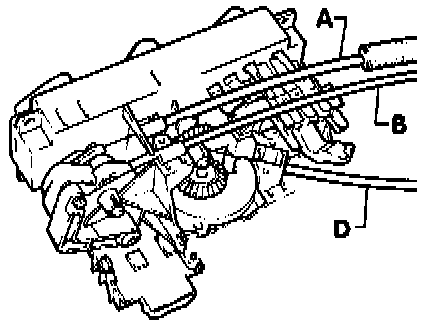

Identifying:





A - To footwell/defroster flap
Retainer color: white
B - To central flap
Retainer color: black
D - To temperature flap
Retainer color: red

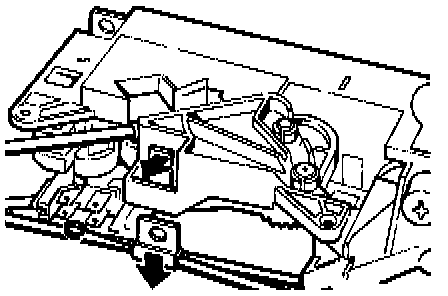

Removing:





- Unlock Bowden cable retaining clip (upper arrow).
- Pull cable downward from retainer (lower arrow)

Inspecting:
- Inspect Bowden cable condition/function.
- Replace if damaged or sticking.

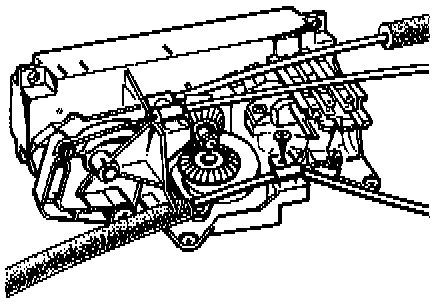

Installing:





If locking tab of Bowden cable retainer breaks off attach cable retainer with screw
