Removal and Replacement

Removing and Installing with Motor Sensor -G92-:





- Remove footwell air outlet duct.

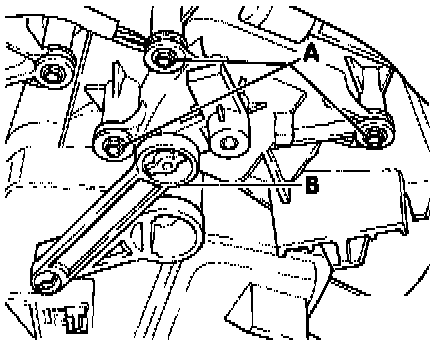

- Remove three screws -A-.
- Disconnect linkage -B-.
- Disconnect connector (brown housing) and remove flap motor.
- Install in reverse order of removal.
