Defroster Flap Motor

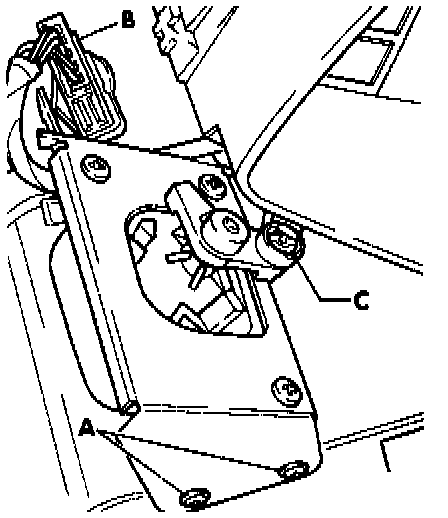

Removing and Installing Motor with Position Sensor -G114-:





- Remove footwell air outlet duct.
- Remove two screws -A-.
- Disconnect harness connector -B- (red housing).
- Disconnect linkage -C- and remove flap motor.
- Install in reverse order of removal.
