Sunroof Motor Neutral Position

Sunroof motor "Neutral" position, checking and adjusting

Checking

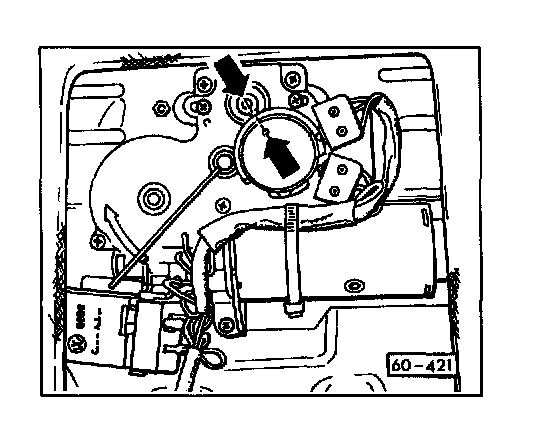

The sunroof motor is in the "Neutral" position is when the hole and the lug are aligned as shown (arrows).


Adjusting






With drive installed:

- Open roof panel 50 mm (2 in.) toward rear, then close again.
Do not tilt upward, otherwise adjustment will be incorrect.

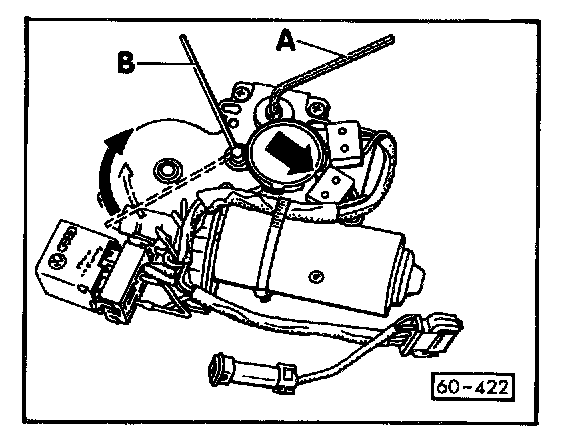

- Disengage cable drive from sunroof motor by turning release lever -B- in direction shown (left arrow).

- Insert "crank" or hex key -A- (4 mm) into drive pinion, and turn to right until pin on switch latches into cam plate recess (arrow).

Lug and hole must align.

Note: "Neutral" position on cable drive can only be adjusted after turning drive pinion to right.

- Engage cable drive to sunroof motor by turning release lever -B- in direction opposite arrow.

- Follow remaining installation instructions.

Checking end position cut-off






With the roof panel closed:

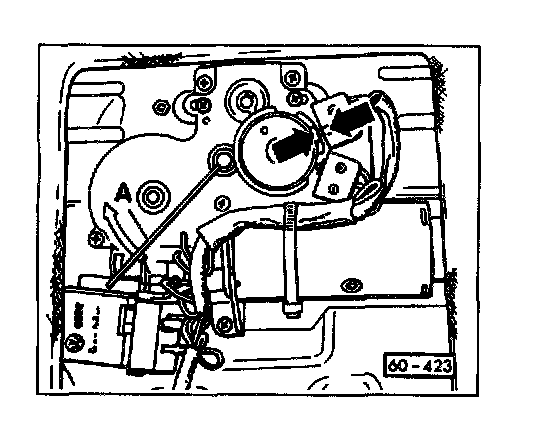

- Open roof panel toward rear until motor shuts off (10 rotations of rack wheel).

In this position, it must be possible to disengage the motor from the gear using lever -A-.


If the motor cannot be disengaged:

- Check parallel running and adjust if necessary.
