Cable Drive Servicing

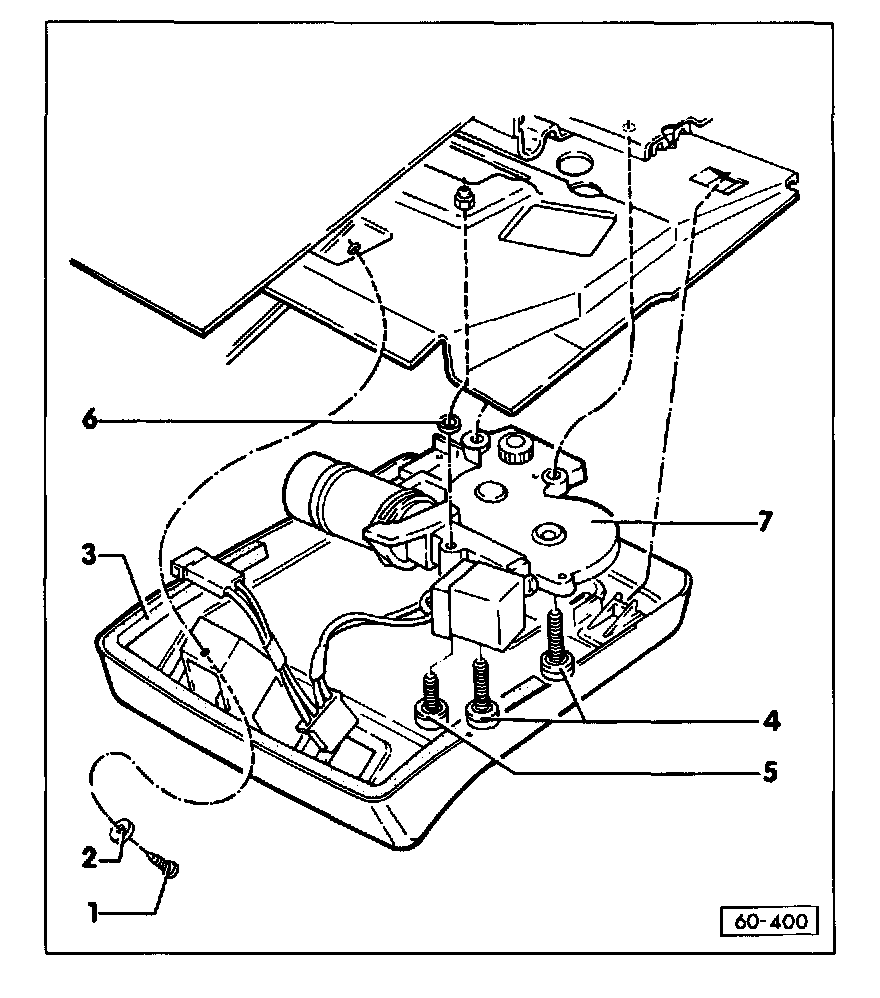

ELECTRIC CABLE DRIVE, SERVICING






1 - Self-tapping screw
1 Nm (9 in. lb.)

2 - Washer

3 - Cover
Electrical wiring must not lie over bulb

4 - Raised countersunk screw
Locking compound on threads
M4 x 20
3 Nm (26 in. lb.)
Installing: clean threads with wire brush and coat with locking compound AMV 197 000.01
Follow tightening sequence:
only install screw -5- after mounting screws -4-

5 - Raised countersunk screw
Locking compound on threads
M4x15
3 Nm (26 in. lb.)
Installing: clean threads with wire brush and coat with locking compound AMV 197 000.01

6 - Spacer

7 - Cable drive
Check "Neutral" position before installing, and adjust if necessary
Check end position cut-off
Check drive pinion for damage
