Home >> Audi >> 1995 >> 90CS Quattro V6-2.8L (AFC) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Brakes and Traction Control >> VAG Codes >> DTC 00286

DTC 00286

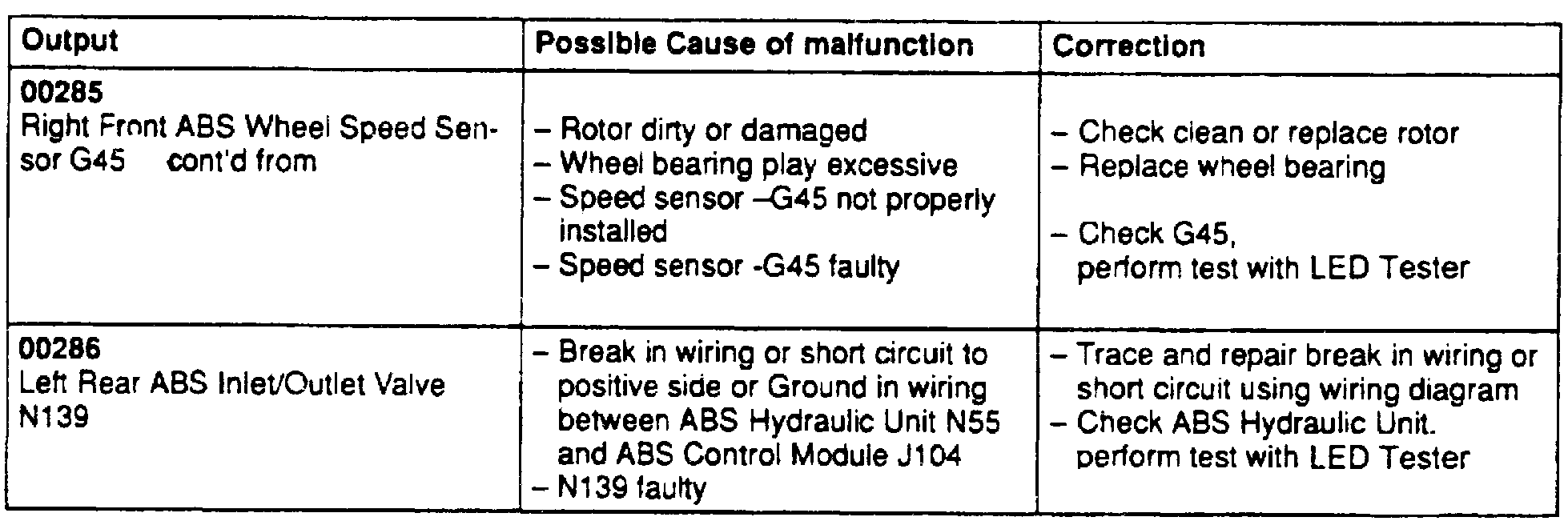

Fig.25 Code 00285 & 00286: Right Front ABS Wheel Speed Sensor & Left Rear ABS Inlet/Outlet Valve.:
