Cabin Temperature Sensor / Switch: Description and Operation

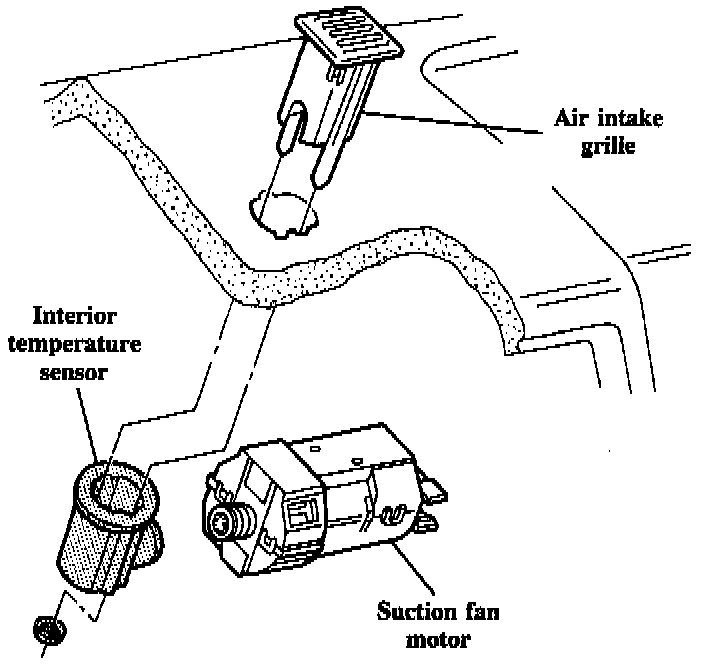

Interior temp sensor

Purpose and Operation
The control panel head measures the interior temperature via an NTC sensor mounted in the dashboard. A small suction fan draws interior air over the sensor to ensure accurate measurement.


The resistance values of this sensor are different than those of the sensor used on the previous style system.
