Electronic Brake Control Module: Testing and Inspection

35 Position ECU Plug:

For Terminal ID refer to "Brakes and Traction Control : Relays and Modules - Brakes and Traction Control : Electronic Brake Control Module : Diagrams". Connector Views

Voltage Measurements

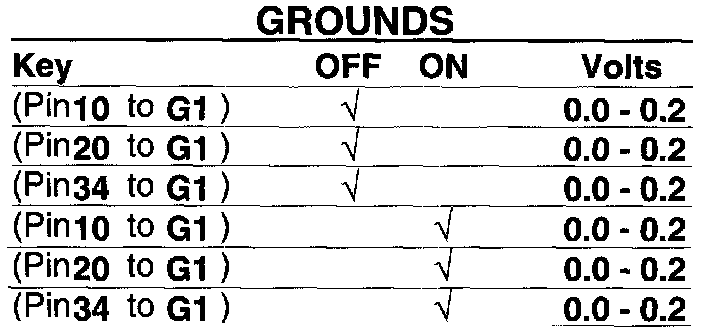

Grounds

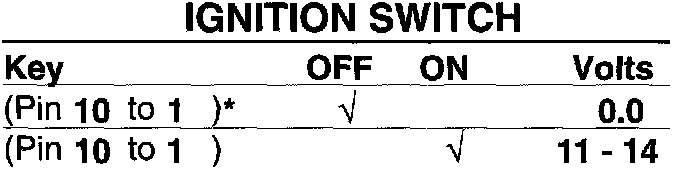

Ignition Switch

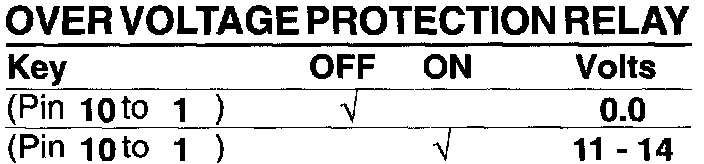

Overvoltage Protection Relay




Alternator Monitor Input

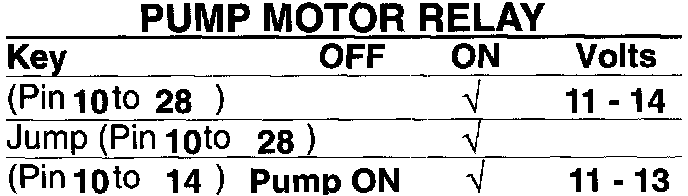

Pump Motor Relay

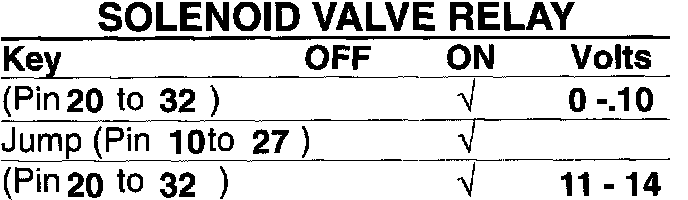

Solenoid Valve Relay

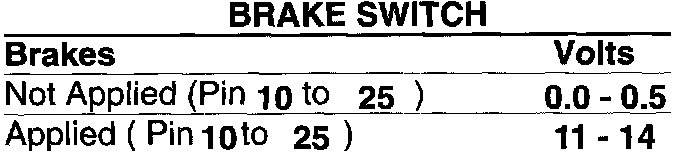

Brake Switch

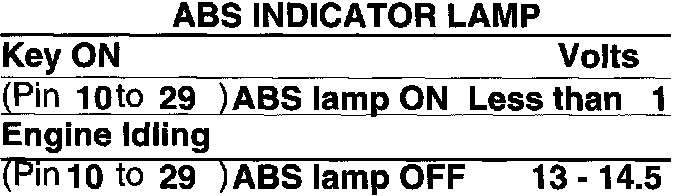

ABS Indicator Lamp

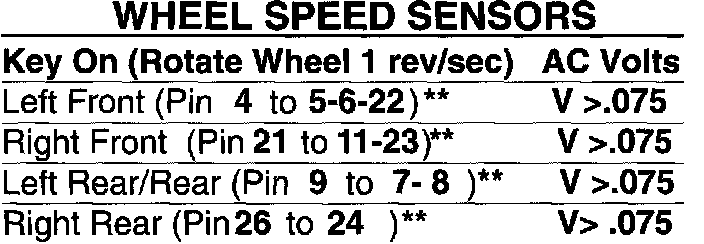

Wheel Speed Sensors

Ohms Measurements

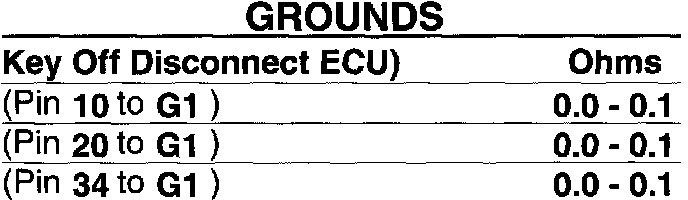

Grounds

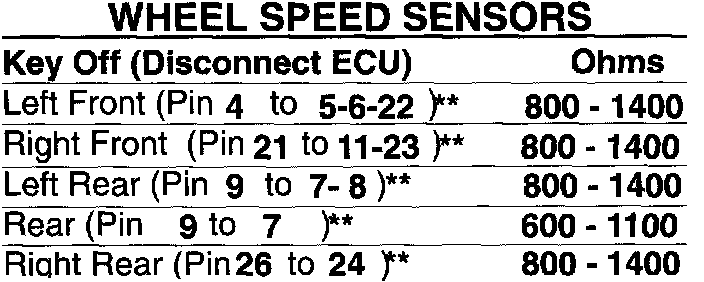

Wheel Speed Sensors

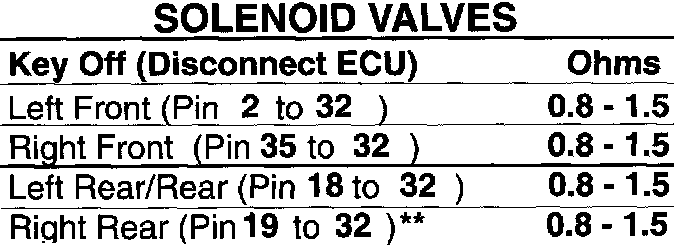

Solenoid Valves

* Only if the system does not use an over voltage protection relay.



** Vehicle specific see chart for details.
In the last column the number of solenoid valves in a system are listed. If there are only three valves listed it means there isn't a right rear valve and therefore no wire in Pin 19. If a wire exists in Pin 19 it will mean the system has four solenoid valves.
