Engine - Journal Sizes and Connecting Rod Bearing

9220audi01

Number:
89-01
July 31, 1989


Group:
13


Engine


Applies To: 5000 From 1984 m.y.
100 - 200 ALL

Subject:
Crankcase Journal Sizes Connecting rod bearing clearance, checking

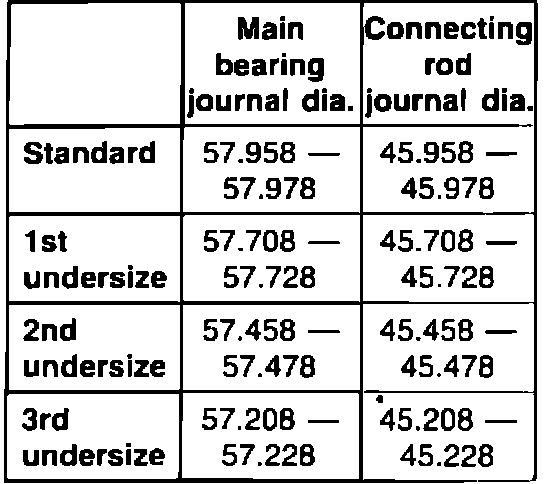

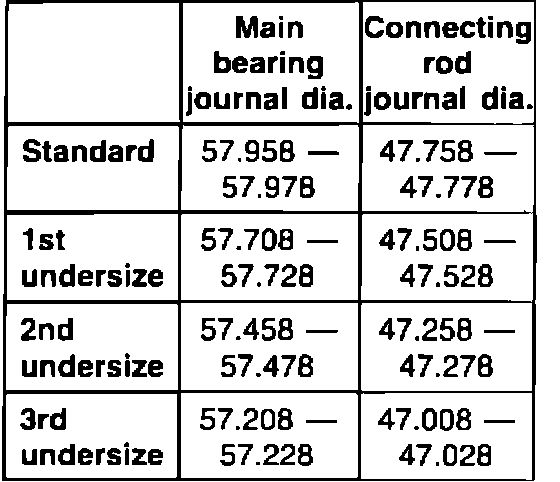

Crankcase journal sizes (in mm)

Engine codes: KH, MC, WU





Engine codes: KZ, NF





Engine code: DE





Connecting rod bearing clearance, checking

Note

This procedure supercedes that shown in Audi 5000 Repair Manual 1984-1988, Fiche No. 1, of Nov. 1, 1988, page 13.9.

^ remove bearing cap
^ clean shells and journal

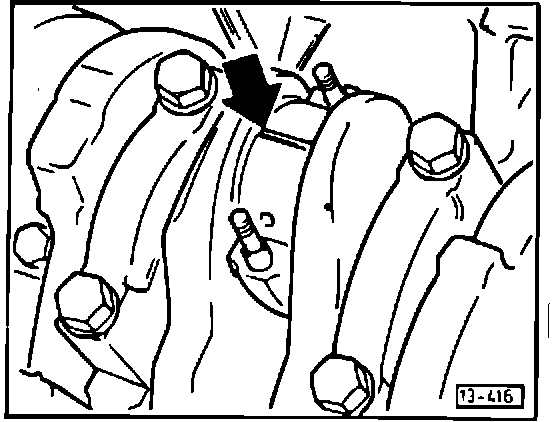

^ lay Plastigage across journal (arrow)
^ install bearing cap and tighten
^ stretch bolts: 30 N-m (22 ft.lb) plus 1/4 turn
^ rigid bolts; 59 N-m (44 ft.lb)





Type Color code Range

PG-1 green 0.025-0.076 mm
PR-1 red 0.05-0.15 mm
PB-1 blue 0.10-0.23 mm


CAUTION

Do not turn crankshaft

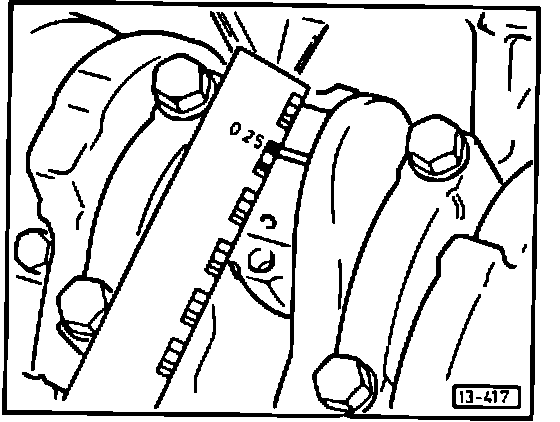

^ compare flattened width of Plastigage with measuring scale
^ new part: 0.010-0.058 mm (0.0004-0.0023 in.)
^ wear limit: 0.12 mm (0.005 in.)
