Dashpot: Adjustments

- remove connecting hose between intercooler and throttle valve
- open throttle valve

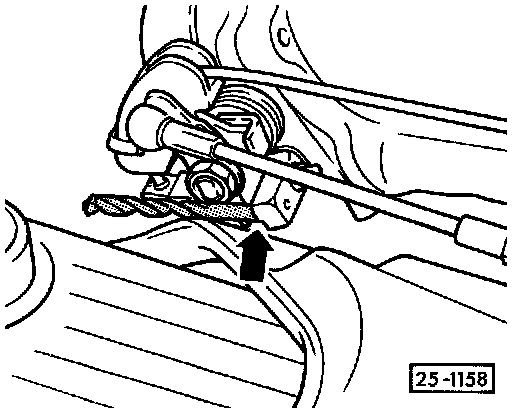

- clamp 5 mm drill bit between stop and throttle shaft (arrow)

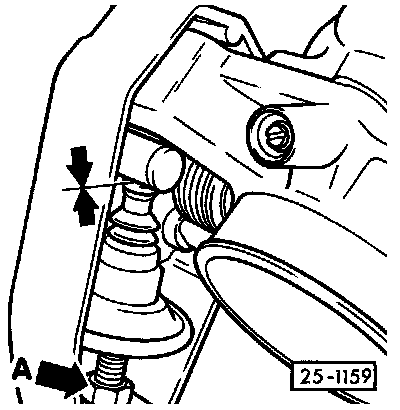

- dash pot must extend in straight line from roller of throttle shaft

IF NO
- loosen locknut A and turn dash pot until it extends in straight line from throttle shaft roller
