Cold Start Injector: Description and Operation

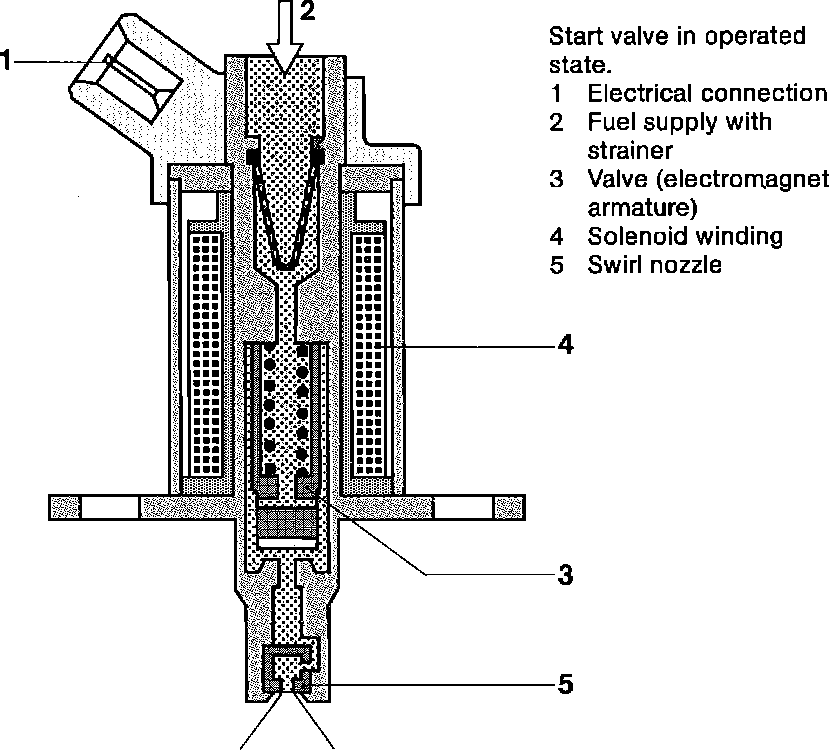

Fig. 8 Cold Start Injector:

The cold start valve is an electrically controlled fuel injector mounted in the intake manifold. When the valve is energized additional fuel is injected into the manifold to aid cold starting. Current flow through the cold start valve solenoid is controlled by the thermo time switch.
