5000CS Turbo L5-2226cc 2.22L SOHC Turbo (MC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Fuel Delivery and Air Induction
>>
System Diagram
>>
Intake Componentss

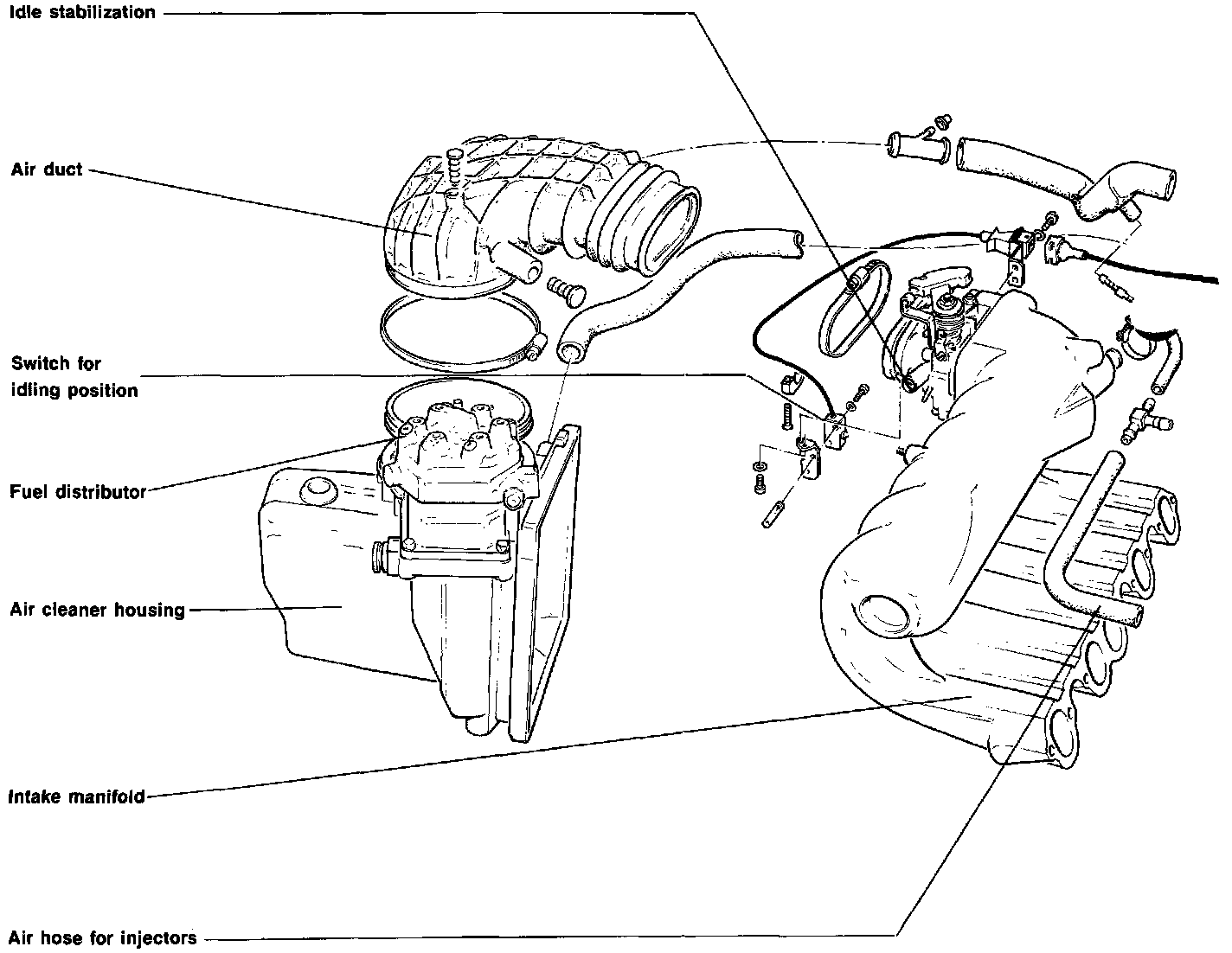

Intake Componentss
Applicable engine codes --
WU, KZ, KH, MC
