5000CD Quattro Wagon (Canada) L5-2226cc 2.22L SOHC Turbo (MC)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Locations
Windows: Locations
Door assemblies

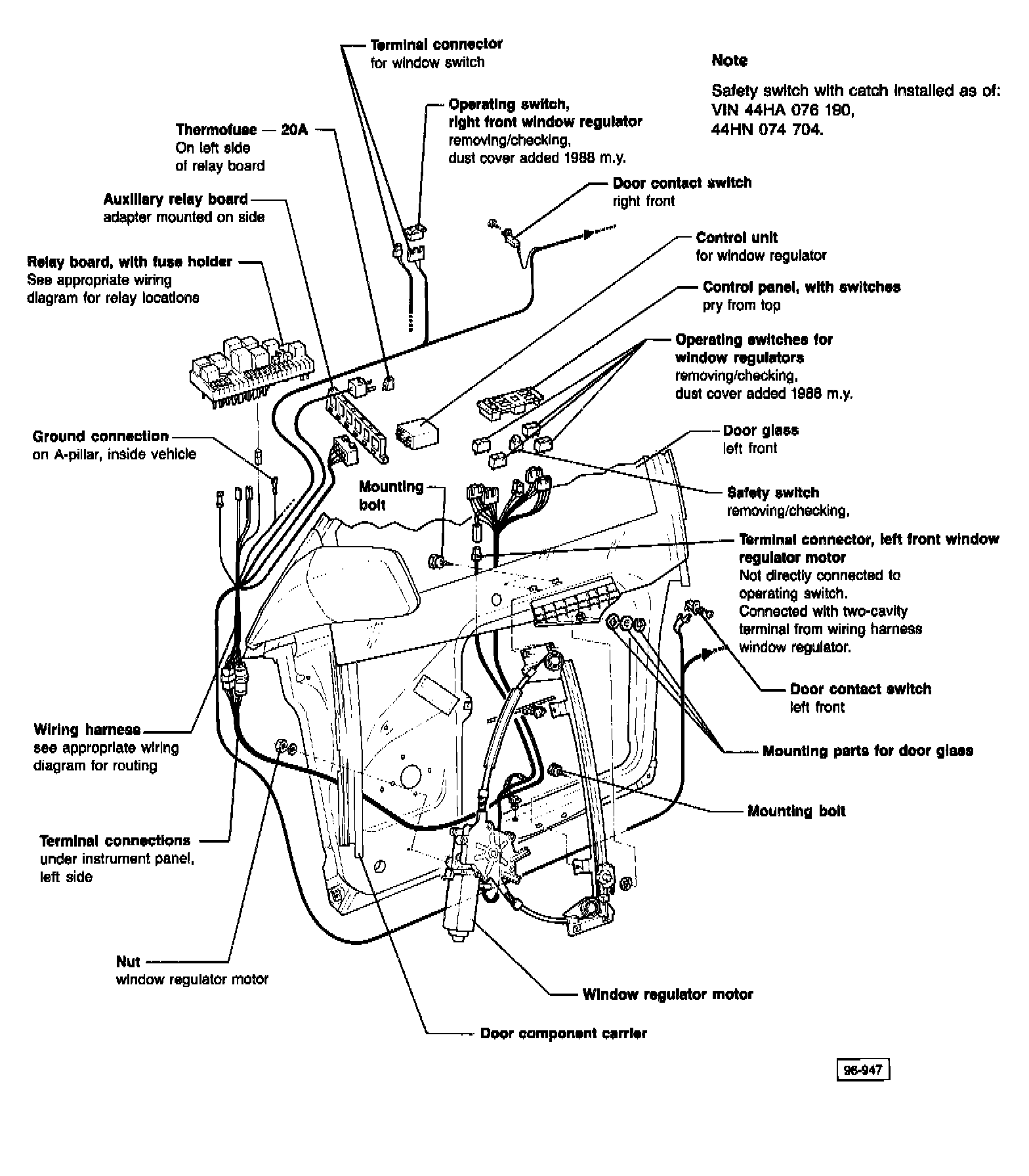

Front Door Assembly:

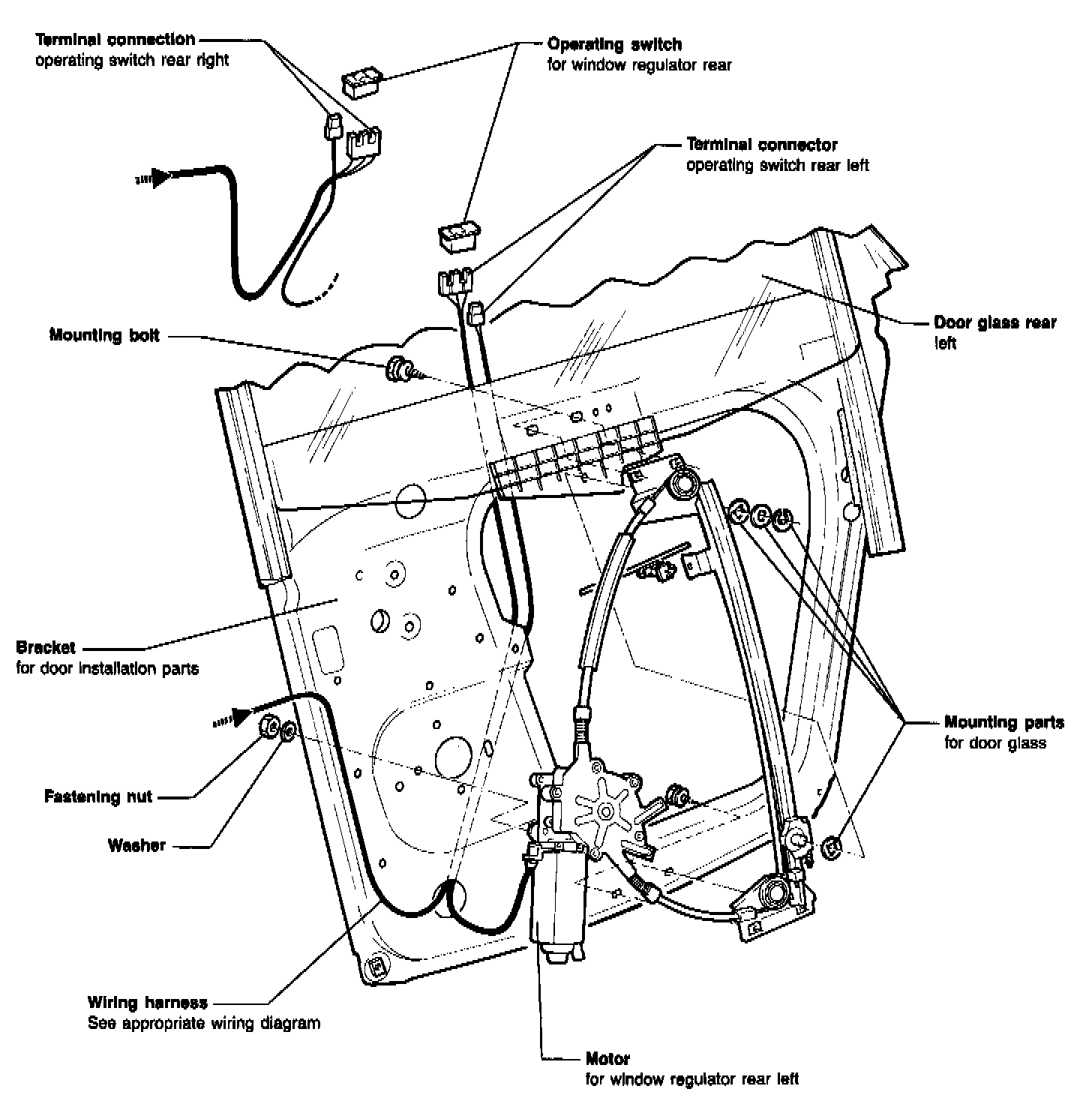

Rear Door Assembly:
