Steering Column

Steering Column

Steering Column:

- loosen clamp

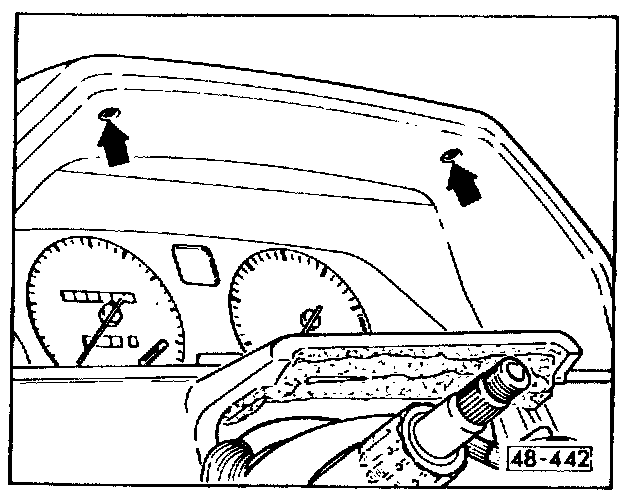

- remove bolts (arrow)

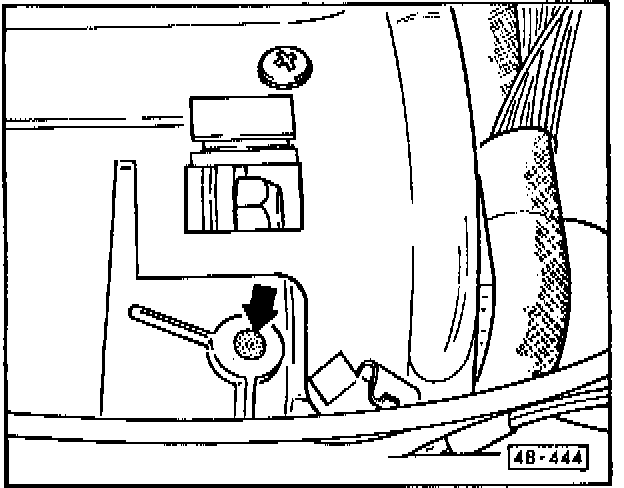

Fig. 3 Shear bolt, drilling out:

- use 3.5mm (1/8 in.) drill (arrow)

Fig. 4 Steering wheel, installing:

a = 3mm (1/8 in.)
- adjust if necessary


NOTE: Road wheels in straight ahead position. Cancelling lug points to left. Turn signal lever in center position.

- loosen switch clamp
- slide steering column switches along column tube
- tighten switch clamp




- push flange tube onto steering column (arrows)

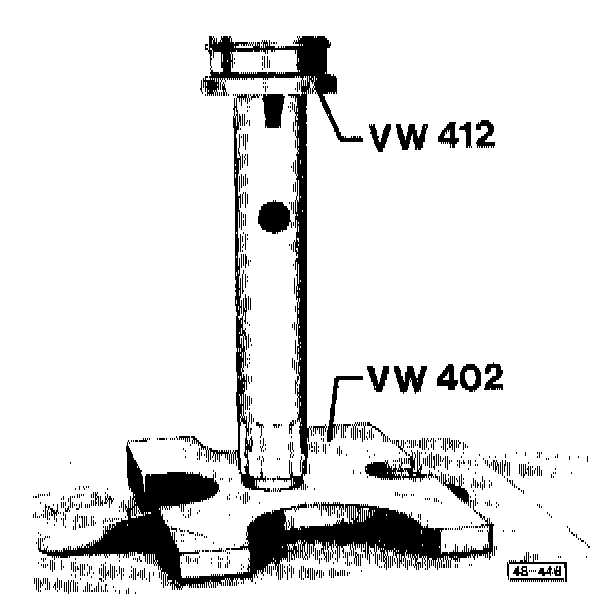

Fig. 6 Column bearing, removing:

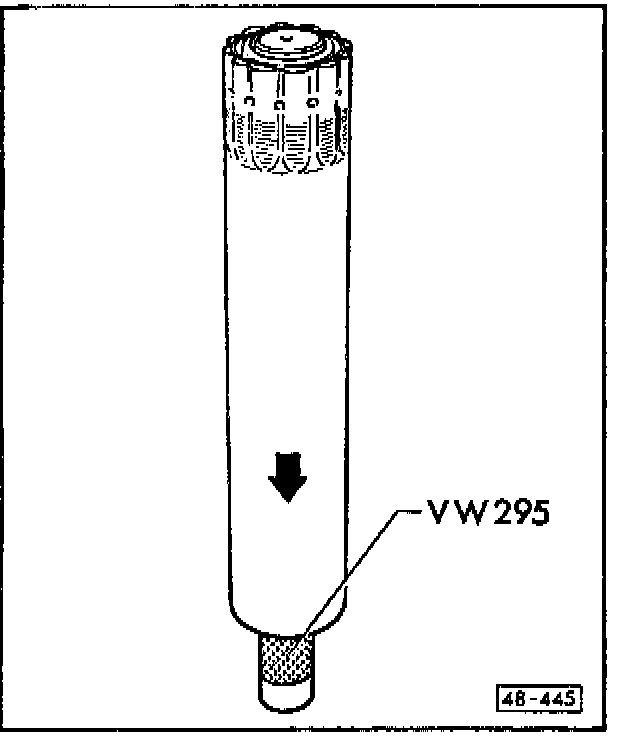

Fig. 7 Column bearing, installing:

- press in flush

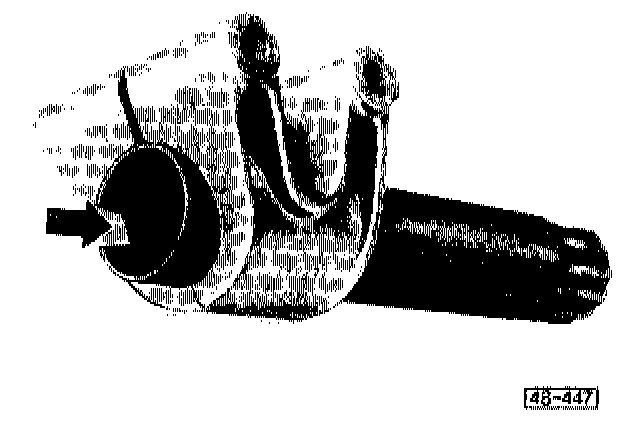

Fig. 8 Column tube, installing:

- insert into steering column clamp as shown (arrow)

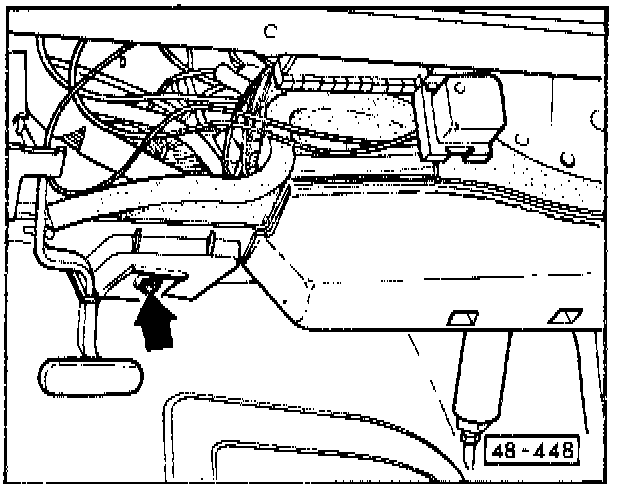

Fig. 9 Air duct, removing:

- necessary to hold flange tube and steering column together
