Cruise Control Servo: Locations

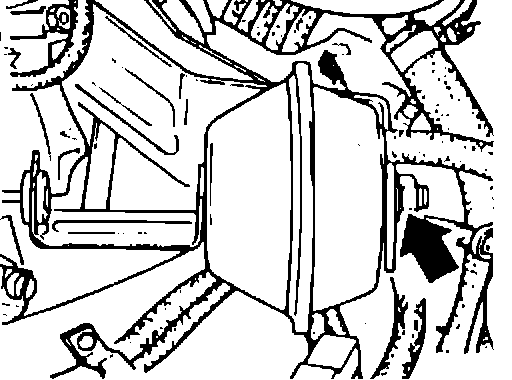

Vacuum Servo Unit Location.:




In Engine Compartment, Near Coolant Expansion Tank

Applicable to: 5000
