Up to Feb. 1987

Sunroof lid, installing

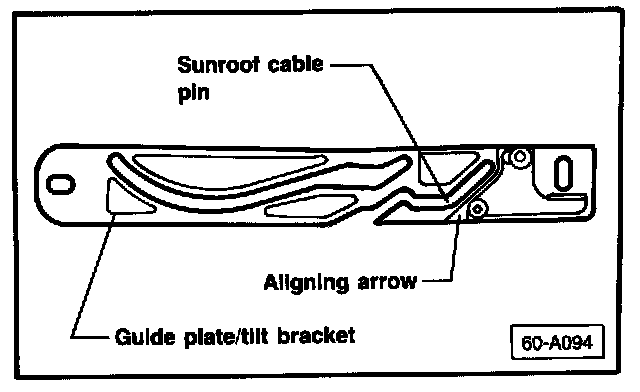

- align sunroof cable pin with arrow on guide plate/tilt bracket
- do this on both sides




- install sunroof lid in opening

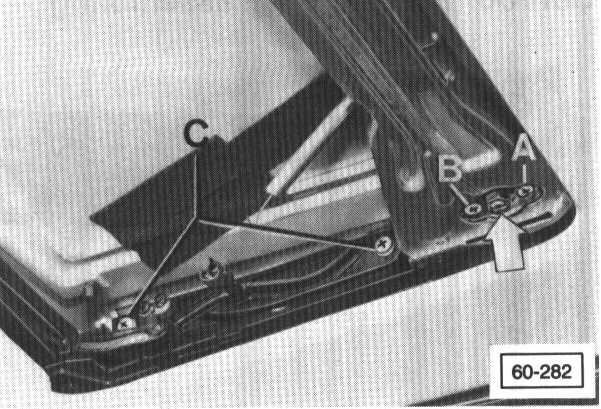

- start screws A, B, C but DO NOT TIGHTEN

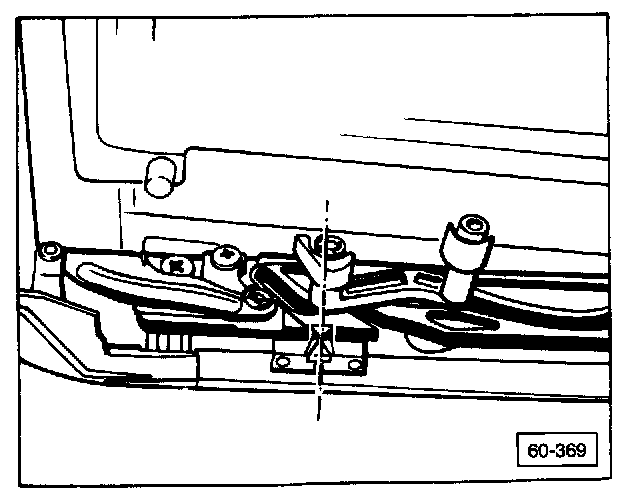

- check that mark on rear guide aligns with mark on guide rail (both sides)
- adjust if necessary

CAUTION! When lining up cables to guide rail, always move cables from front of vehicle rearward to marking lines. Do not move cables from rear of vehicle forward to marking lines.

CAUTION! Sunroof drive gear must not be engaged when trying to check parallel running of sunroof cables.
