From Feb. 1987

Sunroof lid, adjusting




- adjust sunroof height according to illustration

Note: To reduce the possibility of wind noise, the front of sunroof lid must be lower than roof line and rear of sunroof lid must be higher than roof line.


Front height, adjusting

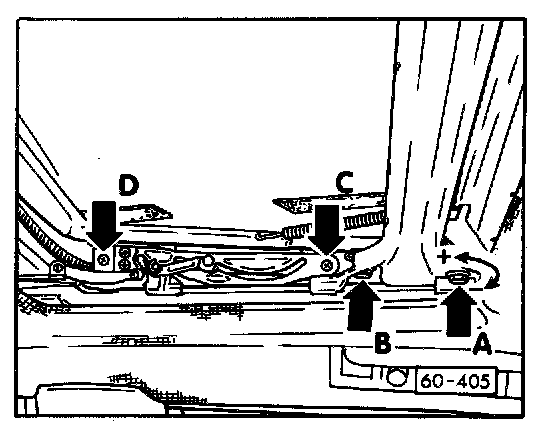

- turn in adjusting nut A but do not tighten
- thread nut B onto bolt and tighten
^ 6.0 Nm

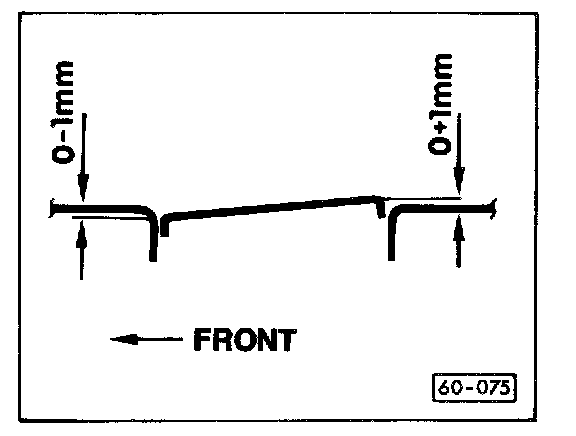

- turn adjusting nut A until front of sunroof lid is approximately 1.0 mm below roof line (see illustration 60-075)

CAUTION! Never tighten nut A to a specific torque or tighten securely. Coat adjusting nut A with Loctite to prevent it from loosening.


Rear height, adjusting





Note: Sunroof remains closed during adjustment.

With C and D loose,
- push sunroof lid to proper height
- tighten screw D
^ 4.5 Nm
- tighten screw C
^ 4.5 Nm
- open sunroof lid to rear 50 mm and close
- check height adjustment (front and rear)
- re-adjust if necessary


Sealing gap, fine adjustment

Note: Fine adjustment of sealing gap is done after height adjustment.




- tilt sunroof lid fully to top

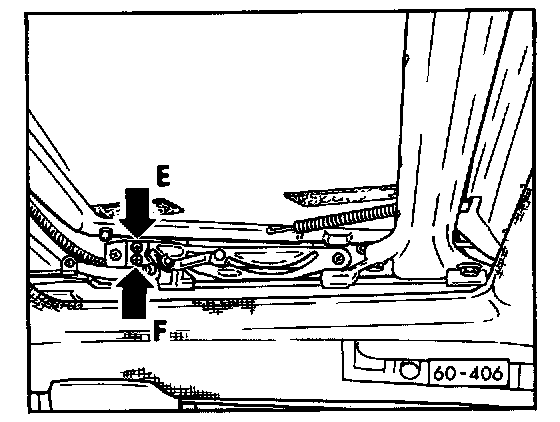

- loosen screws E and F on both sides
- close sunroof
- open sunroof lid to rear 50 mm and close

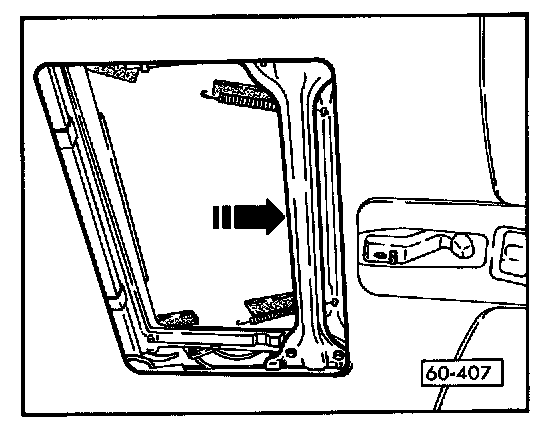

- push lid forward lightly by hand




- tighten screw E
^ 2.0 Nm
- tighten screw F
^ 2.0 Nm
