Instrument Cluster / Carrier: Service and Repair

1. Disconnect battery ground cable.
2. Pull off horn pad, then remove steering wheel.

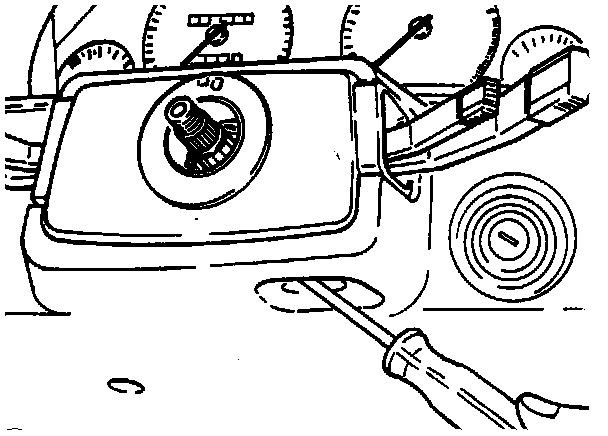

Removing Switch Assembly:

3. Loosen clamp (as shown in image) and remove switch assembly.

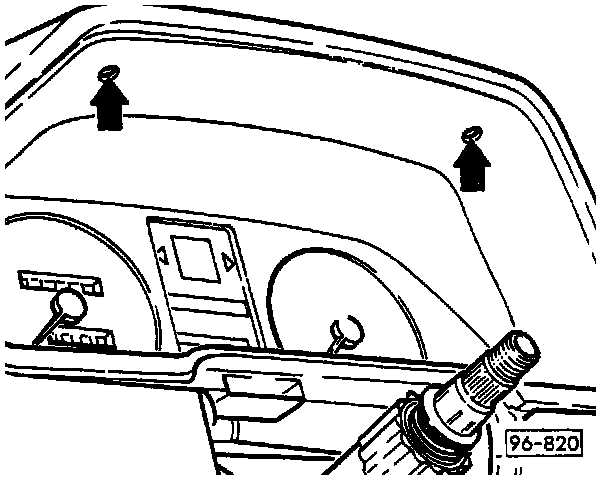

Mounting Screws:

4. Remove instrument cluster attaching screws (arrows).
5. Pull out instrument cluster.
6. Disconnect electrical connectors at instrument cluster and remove cluster.
7. Reverse procedure to install.
