Home >> Audi >> 1986 >> Turbo Quattro Coupe (Canada) L5-2144cc 2.14L SOHC Turbo (WX) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Diagrams >> Part 1 of 2

Part 1 of 2

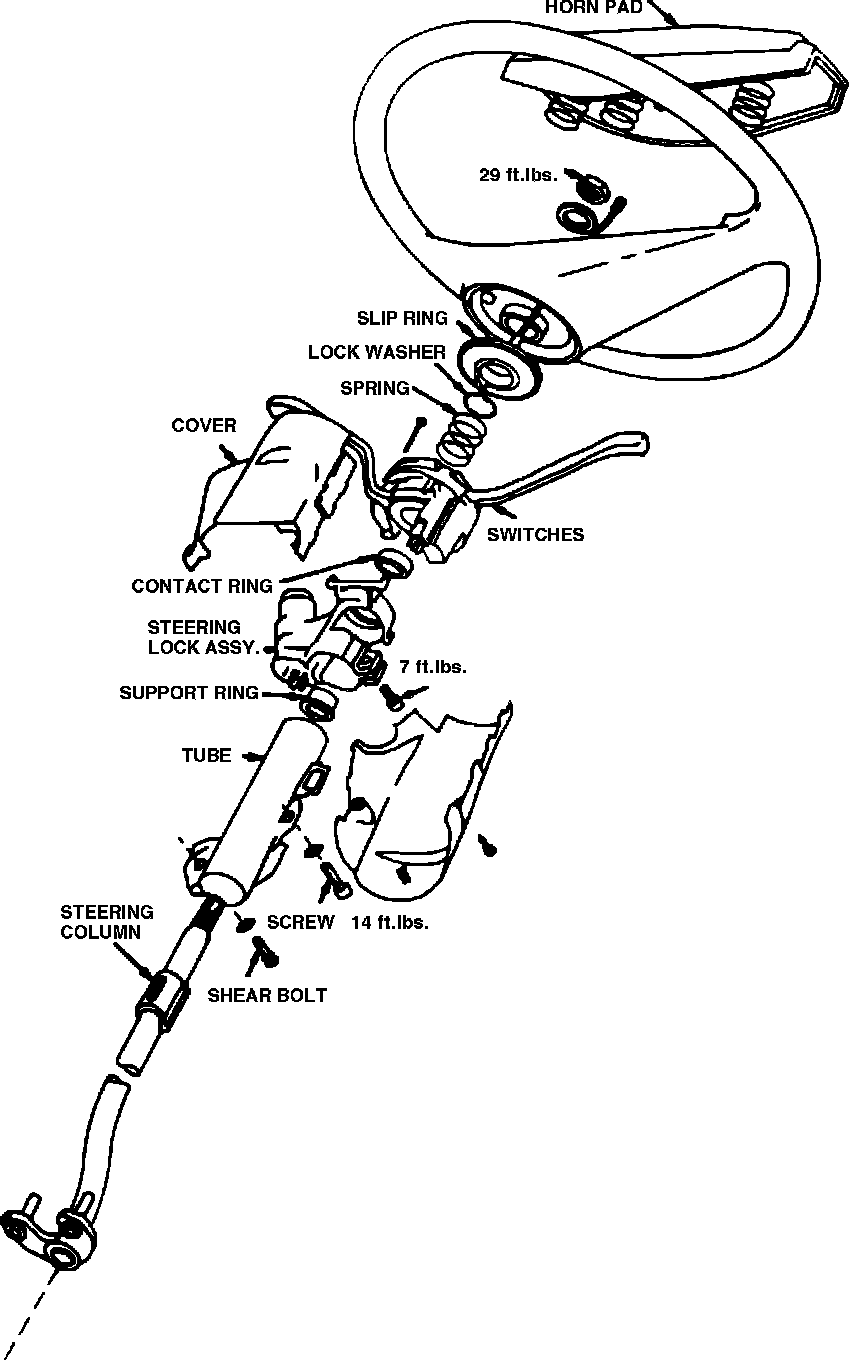

Fig. 5a Exploded view of steering column (Part 1 of 2).:
