Technical Data

Technical Data:

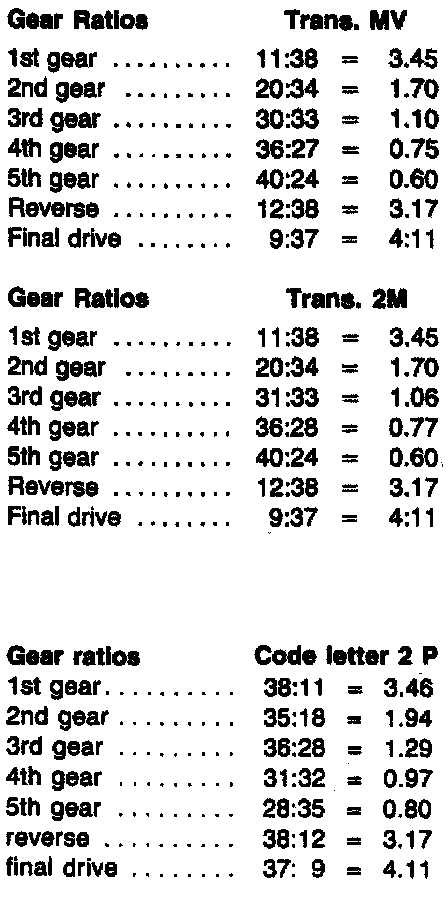

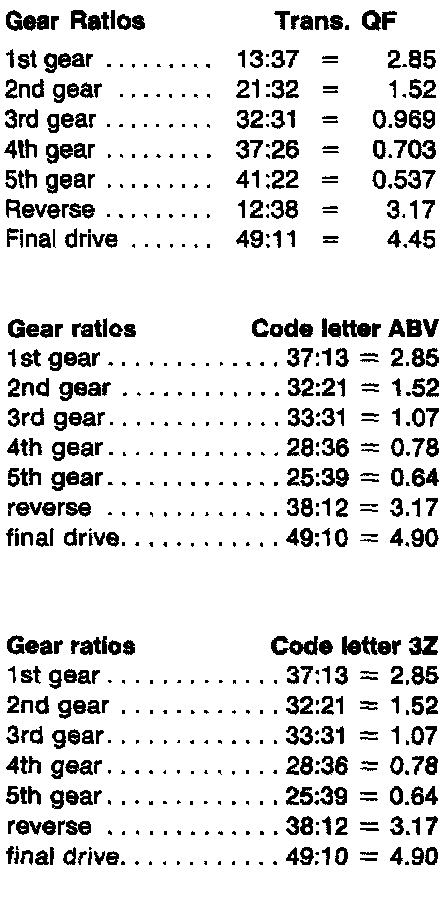

Manual Transmission 5-spd 093, Gear Ratios:





Manual Transmission 5-spd 013, Gear Ratios:
